Operating elements for crane operation
9.1 Overview of the operating elements
9 - 44 Operating manual
GMK5150L
Lifting capacity
tables menu
à Displaying the lifting capacity tables, p. 11 - 59
–For the
Standard slewing range type
–For the
MAXbase slewing range type

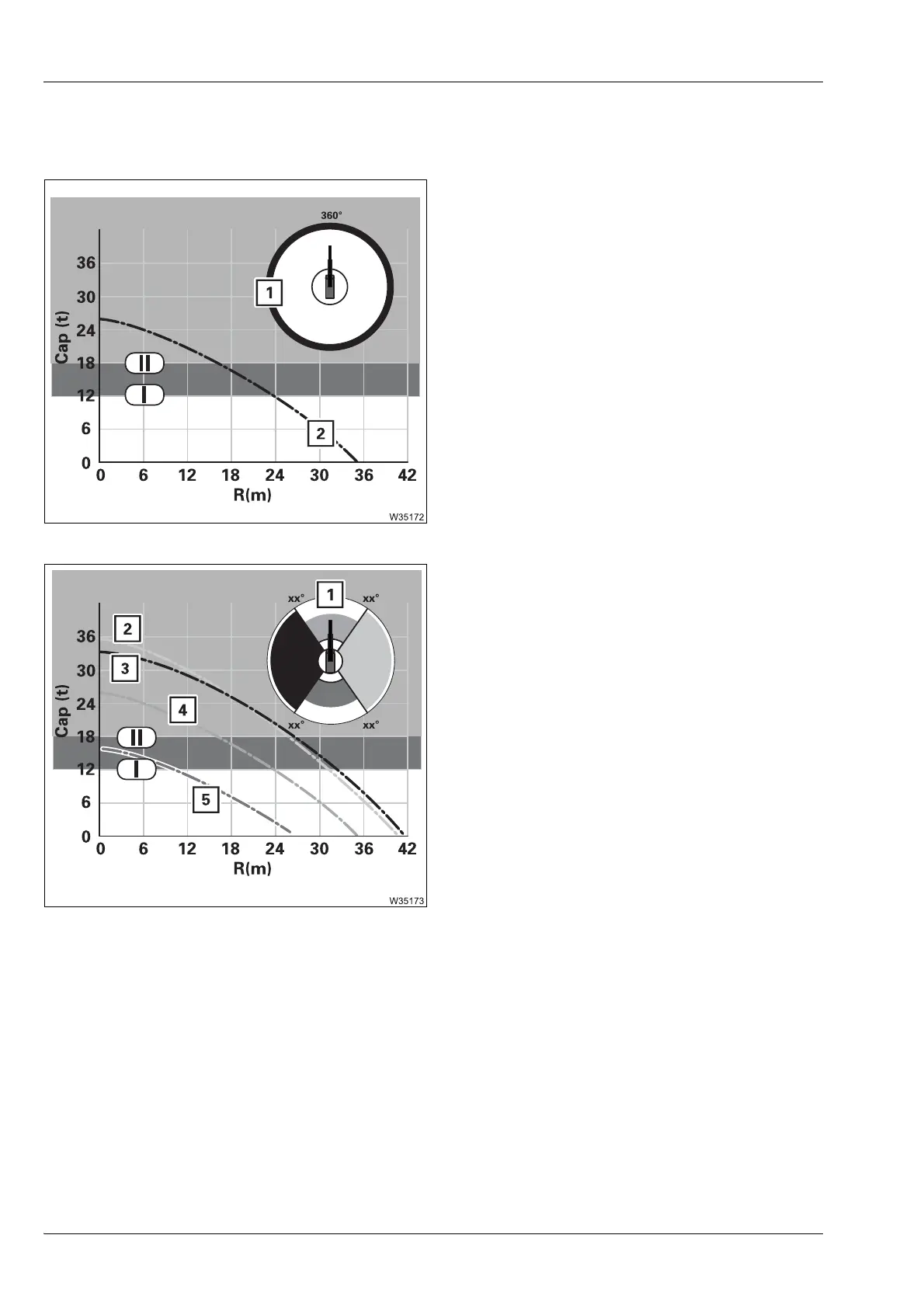

1 Slewing range display
2 Permissible working range display
(range under the curve)
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 11 - 59
1 Slewing range display
– Four slewing ranges, marked in
colour
2
3
4
5
Permissible working range display
– A coloured curve for each slewing
range
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 11 - 61
