Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 139
GMK5150L

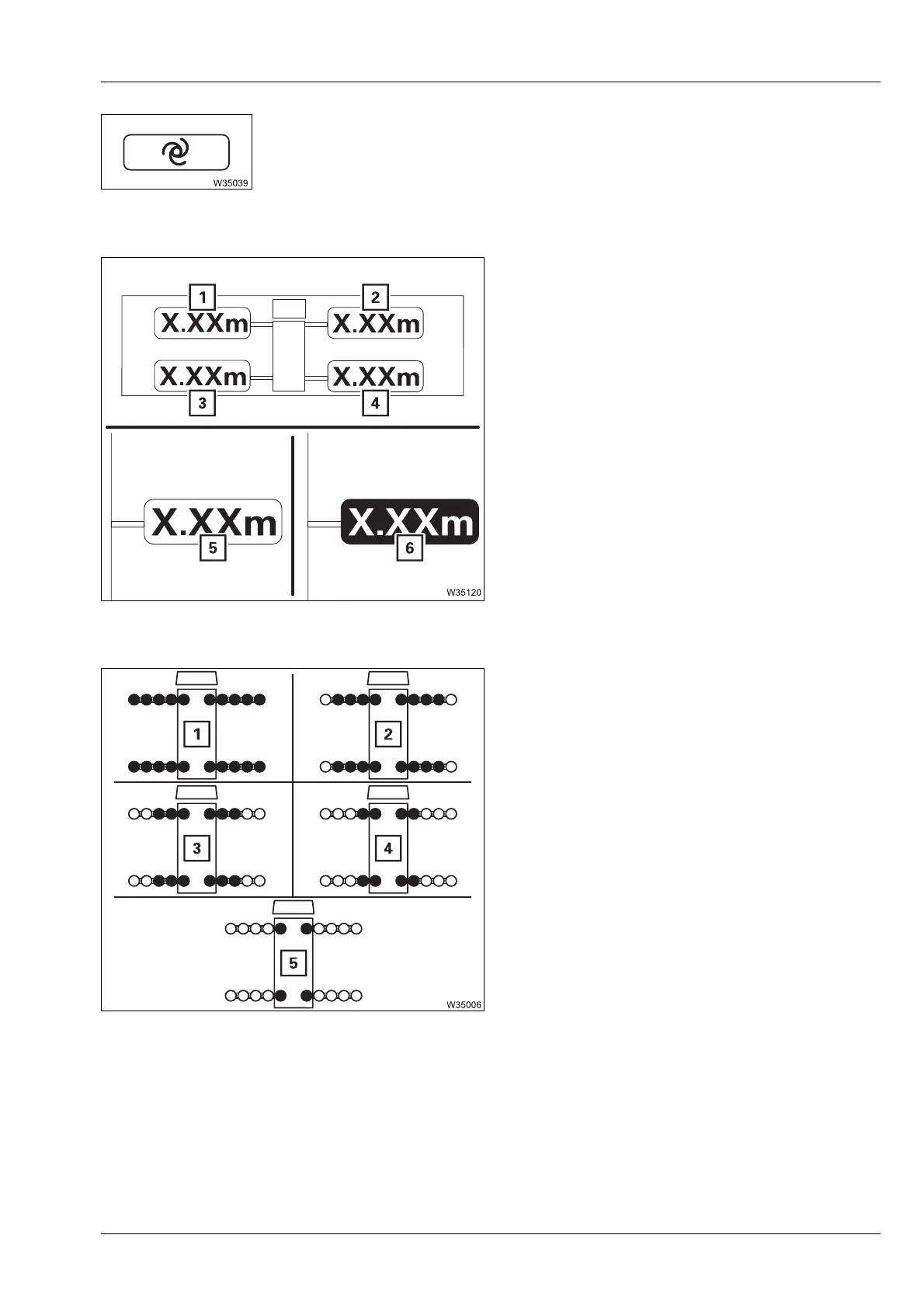

Accept the measured outrigger span
Select and confirm – the outrigger span provided by the outrigger width
monitoring is adopted and shown on the
Enter outrigger span display;
à Confirm the rigging mode and lifting capacity table, p. 11 - 41.
Enter outrigger span
(
MAXbase)
The values are entered individually for
outrigger beams (1) to (4).
In input mode – select and confirm the
individual widths.
Outrigger span monitoring display
(
MAXbase)
à Enter rigging mode, p. 11 - 32
Enter outrigger span
(
Standard)
The selection occurs simultaneously for all
outrigger beams – selected outrigger widths
are orange.
In input mode – select and confirm the
outrigger span
à Enter rigging mode, p. 11 - 32
s
5 Measured outrigger width = required
width
6 Measured outrigger width ≠of required
width
1 8.030 x 7.600 m (26.3 x 24.9 ft)
2 8.030 x 6.700 m (26.3 x 22.0 ft)
3 8.030 x 5.900 m (26.3 x 19.4 ft)
4 8.030 x 5.100 m (26.3 x 16.7 ft)
5 8.030 x 2.500 m (26.3 x 8.2 ft)
