Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 141
GMK5150L
In the Pre-selection telescoping menu
à Pre-selecting telescoping, p. 11 - 40
Enter desired parameter
In input mode – select and confirm
parameters (1), (2).
The corresponding table is displayed.
Pre-selection telescoping
Table sorted by columns – select and confirm
the desired symbol.
During the telescoping duration, the required
telescoping times are compared and provided
with values between 1 (shortest time)
and 5 (longest time).
Preselect the telescope status – select and
confirm the desired line, e.g. line (3).
– The
Pre-selection telescoping menu closes
– The
Enter rigging mode/telescope status menu
opens
à Pre-selecting telescoping, p. 11 - 40
s

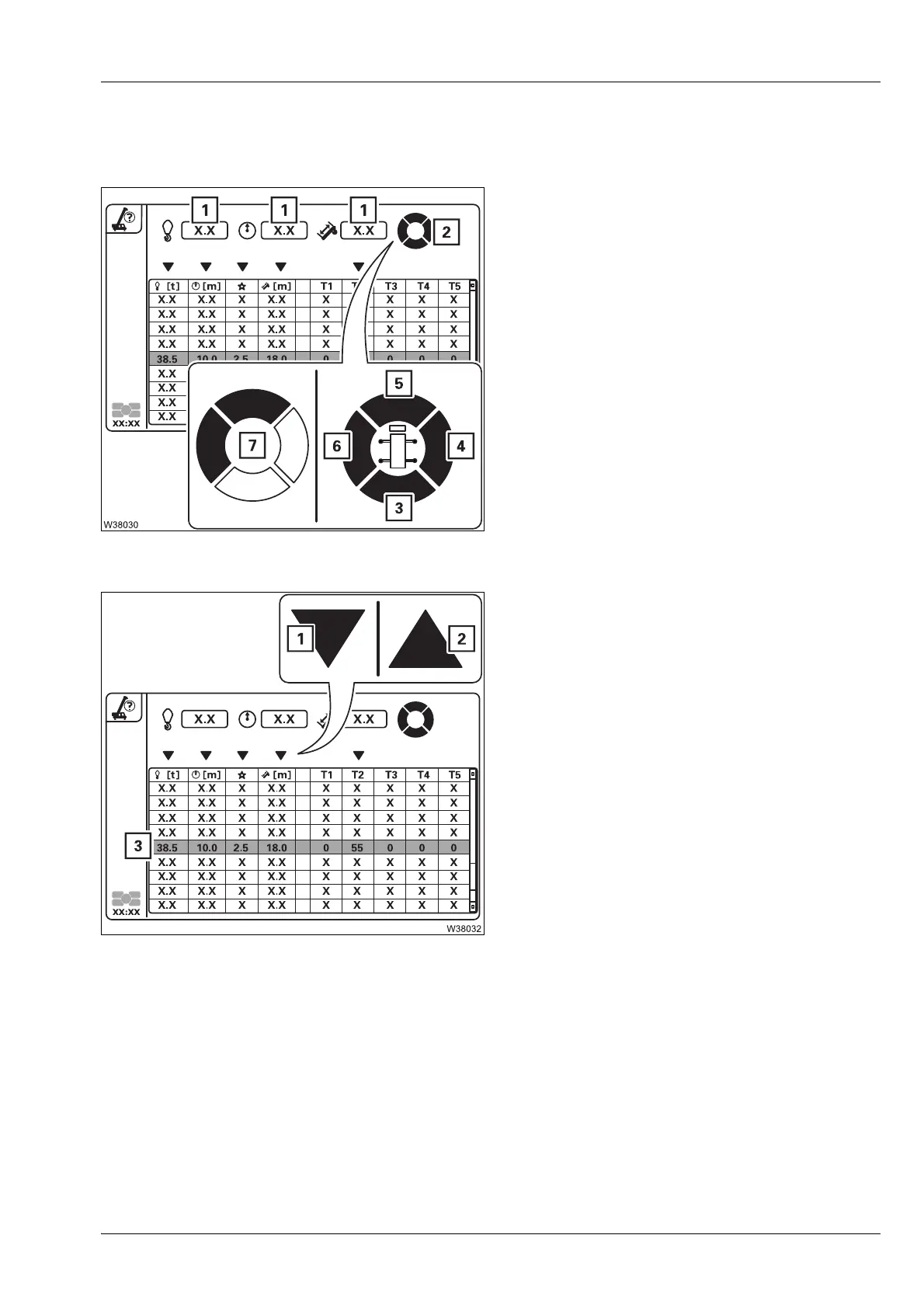

1 Selection of numerical values
2 Selection by marking the segments –
marked segments are black
3 Backwards
4 To the right
5 Forwards
6 To the left
7 Example for selecting the slewing
range to the front and to the left
1 Descending sorting
2 Asce
nding sorting
