Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 143
GMK5150L
RCL override –
version A
This version only applies to RCL programming as per EN 13000.
For other RCL programming;
à p. 9 - 144.

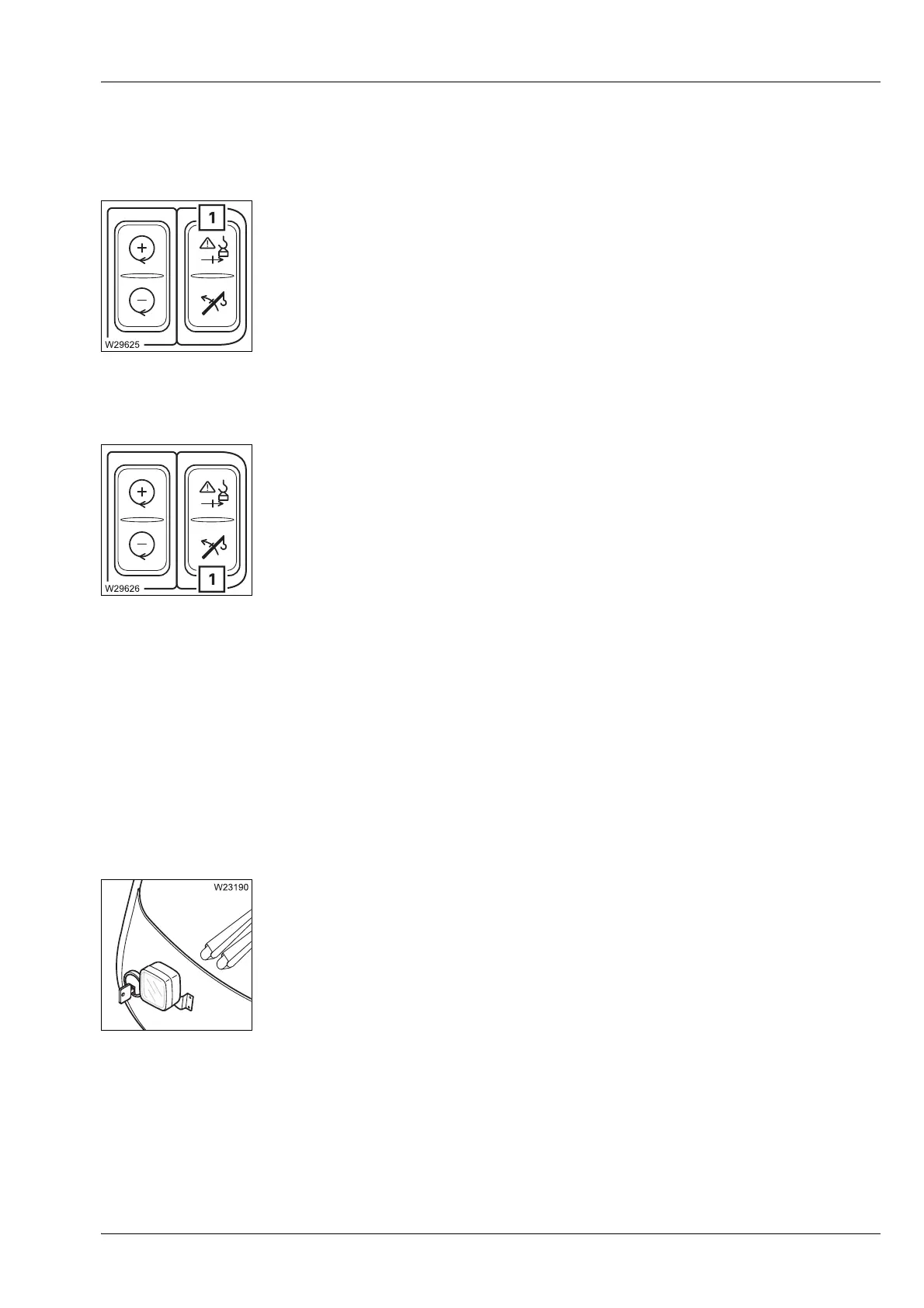

Overriding the RCL
Raise enable button after RCL shutdown
– Switch on function
Only active if the current degree of utilisation is greater than 100% – crane
movements blocked.
– Switch off function
à RCL override – version A, p. 11 - 63
Key-operated switch for overriding the RCL in an emergency
s
1 Press once: RCL shutdown overridden – crane functions enabled up
to 110% utilisation
– Crane functions can be started within the next
10 seconds
– Speed of movements increasing load moment
max. 15%
à RCL override – version A, p. 11 - 63
1 Press once: Release the raise function to the permitted working
range.
If the degree of utilisation is less than 100% – release
of the blocked crane movements.
– Degree of utilisation
less than 100%
Function switched off automatically.
– Degree of utilisation
greater than 100%
Press button in at the bottom once.
– Once to the right
or to the left:
RCL shutdown overridden for 30 minutes –
crane functions released;
à p. 11 - 66
