11.4 Operation of the rated capacity limiter
Operating manual 3 302 709 en 11 - 43
GMK5150L
12.01.2018
Slewing range
type
MAXbase
If the Standard slewing range type has been entered; Ã p. 11 - 41.
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
• Correct any incorrectly entered rigging
modes if necessary.

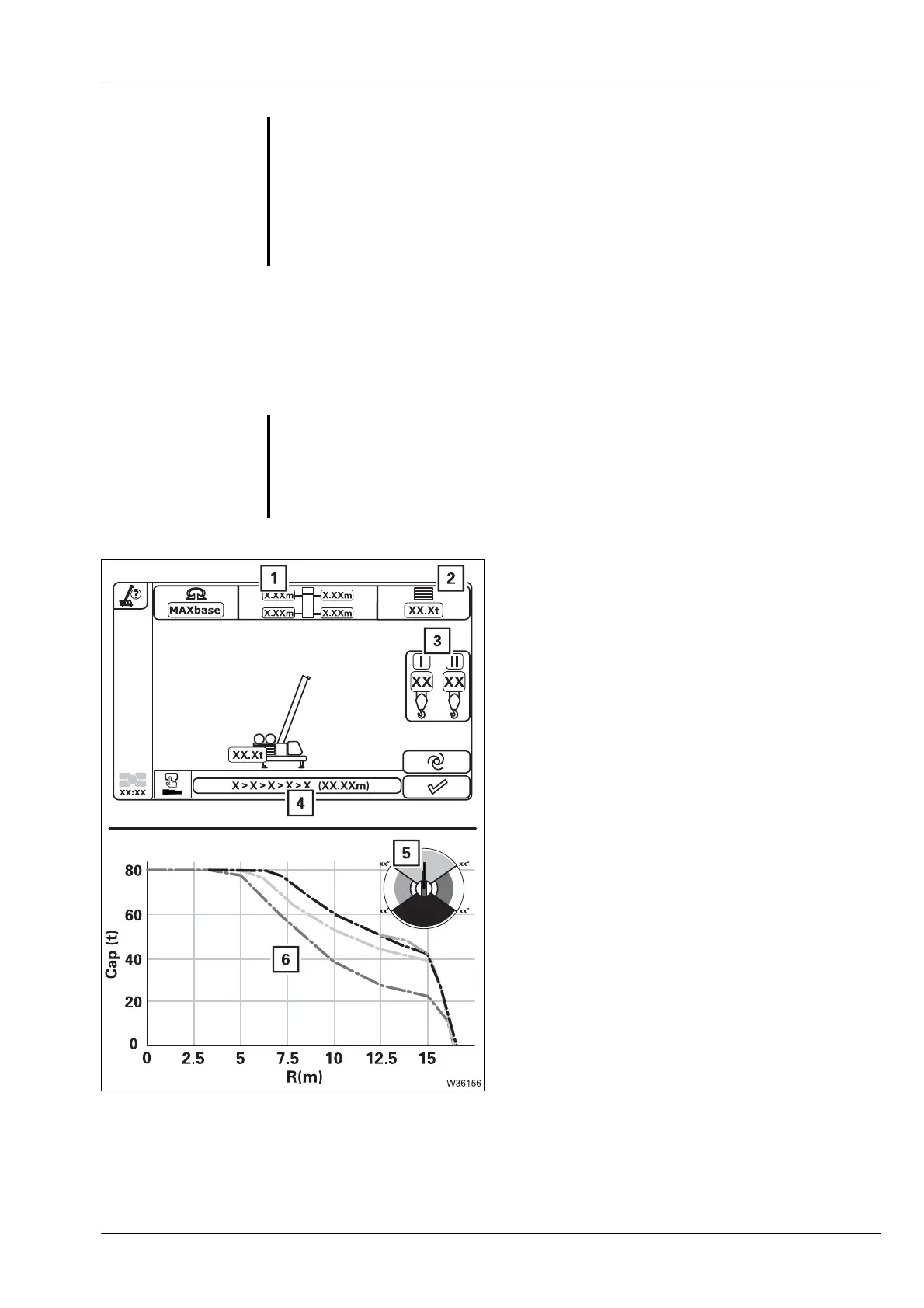

The displayed lifting capacity tables apply
to the preselected telescope status (4) in
the respectively corresponding slewing
ranges (5).
If the current rigging mode is displayed
and the planned operations lie within the
displayed operating ranges (6), then you
can confirm the rigging mode.
s
S
Risk of accident due to incorrectly supported truck crane!
A shutdown is not initiated as standard when an outrigger span monitoring
error message is issued. When an error message is displayed, compare the
rigged outrigger span with the required outrigger span and rig the required
outrigger span.
This prevents the truck crane from tilting due to an inadequate outrigger
span.
G
Risk of accidents due to an incorrectly set RCL
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the
RCLwill not correspond to the actually
permissible lifting capacity according to the
Lifting capacity table.
Overloading and accidents will certainly be the result.
–1 The rigged outrigger span
–2 The rigged counterweight
–3 The number of reeved hoist rope
lines
