Crane operation
11.4 Operation of the rated capacity limiter
11 - 44 3 302 709 en Operating manual
GMK5150L
12.01.2018

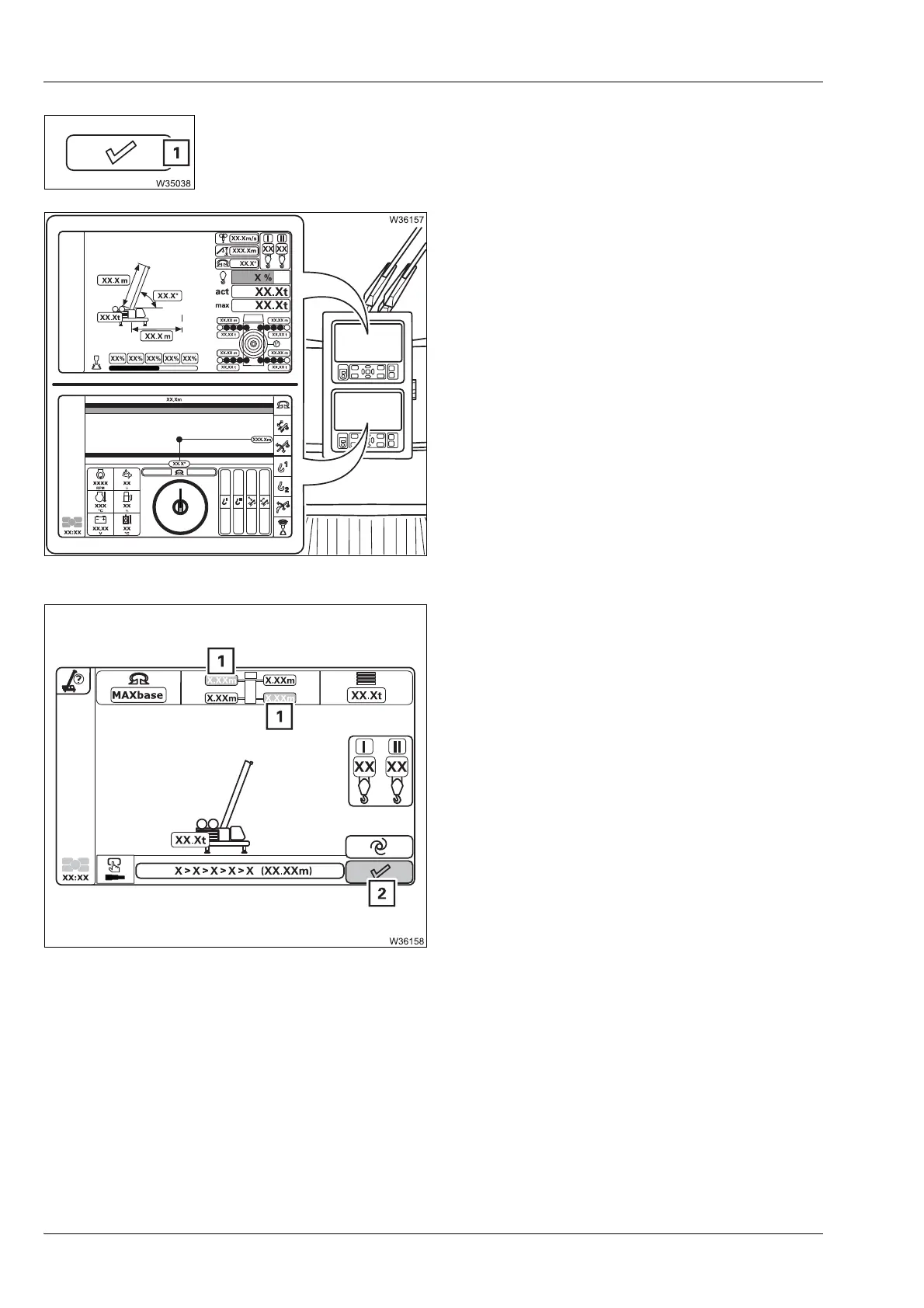

• Select and confirm the symbol (1).
If the rigging mode is permissible
The rigging mode is accepted together with
the display lifting capacity table.
The
RCL display shows the Monitoring menu.
The
CCS display shows the Start menu.
The crane movements are released if there is
no error;
à Checks before operating the crane,
p. 11 - 45.
If a deviation in the outrigger span is detected
The symbol (2) is grey.
The rigging mode cannot be conformed, crane
operation is not enabled.
If the value for an outrigger width is red then a
deviating outrigger span has been detected,
for example, for the values (1).
• Rig the required outrigger spans.
