Manitowoc GROVE GMK5150L

Overview
1.5 Technical data
1 - 18 3 302 709 en Operating manual
GMK5150L
12.01.2018
Steering Dual-circuit hydraulic steering with engine-independent emergency
steering pump
Tyres 8 x 385/95 R 25 on disc wheels 9.50-25/1.7
8 x 445/95 R 25
1)
on disc wheels 11.00-25/1.7
8 x 525/80 R 25
1)
on disc wheels 17.00-25/1.7
Torque for wheel nuts: 650 Nm (480 lbf ft).
Tyre pressure with cold tyres for axle loads up to max. 12 t

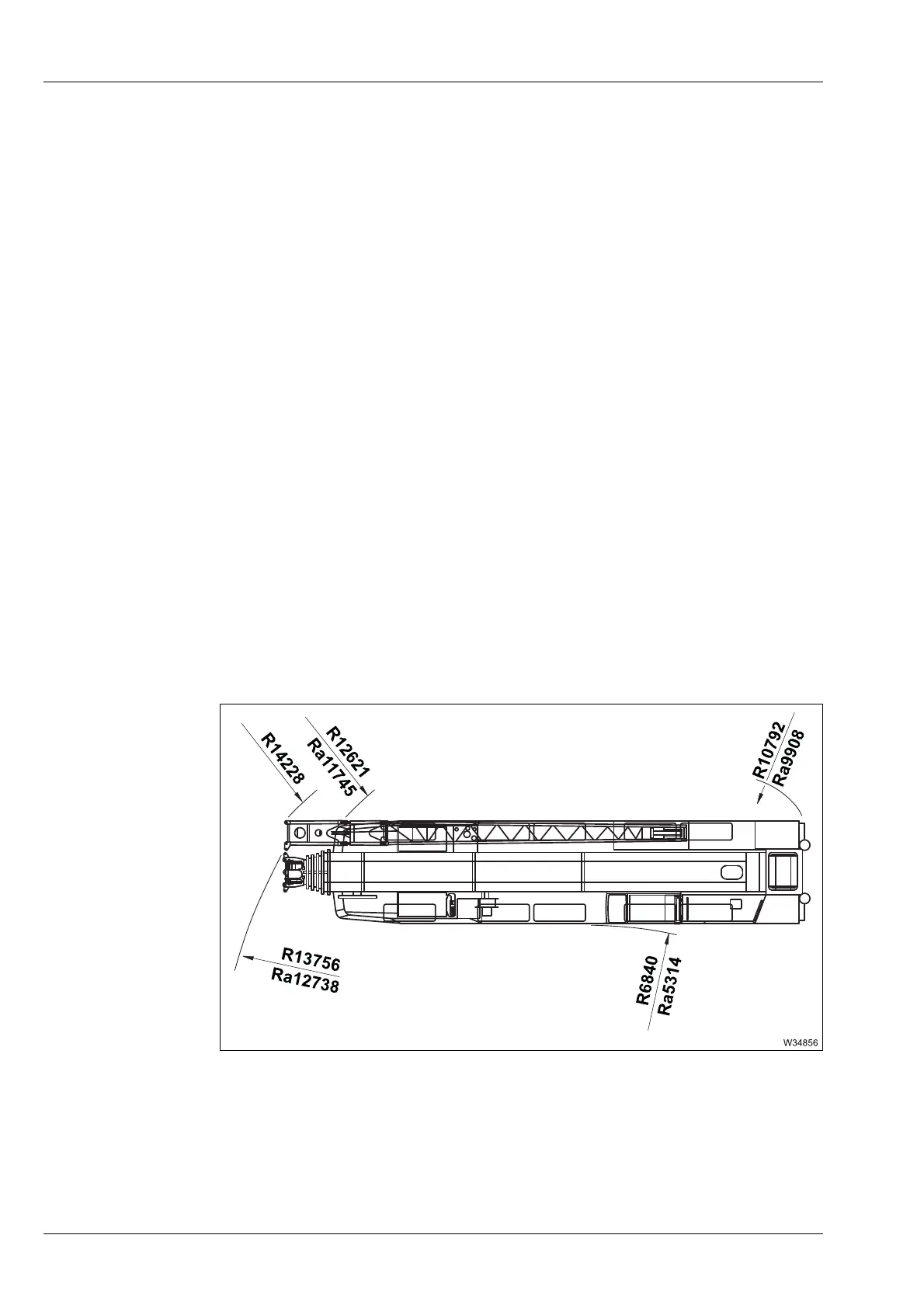

Turning
turning radii
All dimensions in the illustration are in mm.
1)
Additional equipment
385/95 R25
1)
: 10 bar (145 psi)
445/95 R25: 9 bar (131 psi)
525/80 R25: 7 bar (102 psi)
1)
Michelin X-Crane 9 bar (131 psi)
R = values for normal steering mode
Ra = values for all-wheel steering
