Crane operation
11.5 Crane operation with main boom
11 - 96 3 302 709 en Operating manual
GMK5150L
12.01.2018
Telescoping The position of the telescopic sections, i.e. which telescopic section is
extended to what extent, is referred to as telescoping.
The
CCS display shows main boom fixed lengths and main boom interme-
diate/telescoping lengths in different ways.
Fixed lengths
Intermediate lengths/telescoping lengths
Telescoping
sequence
The telescopic sections can only be telescoped individually, one after
the other.
When extending, the telescopic section (1) to (6) with the highest number
must always be extended first, then the telescopic section with the next
lower number and so on (e.g.
IV, III, II, I).
The telescopic sections are always retracted in the reverse order of
extending.

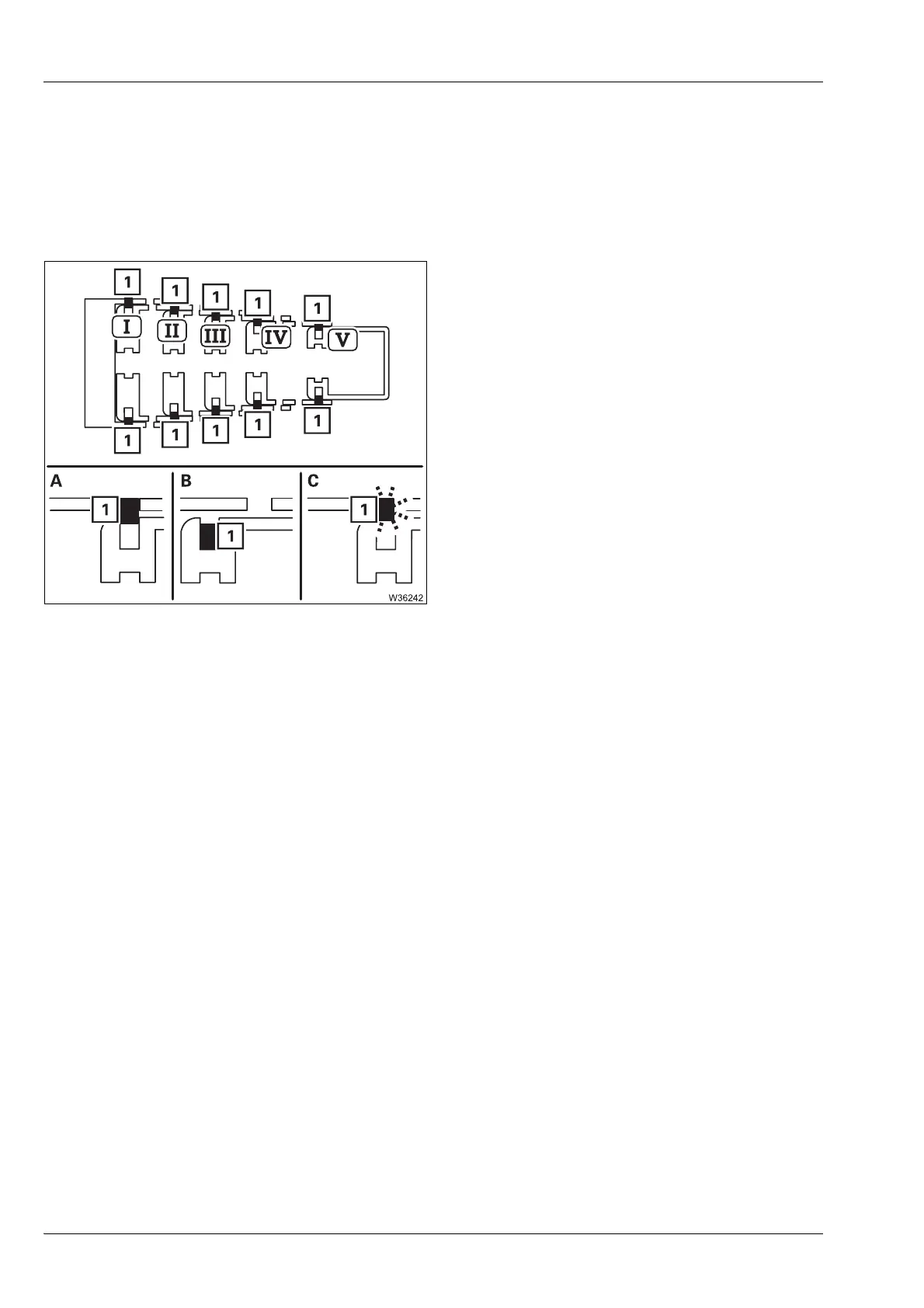

(A) – The locking pins (1) are green.
Each telescopic section
I to V has four fixed
lengths – Fixed lengths overview;
à p. 14 - 39.
(B) – The locking pins (1) are black.
or
(C) – The locking pins (1) are flashing.
Telescopic section at fixed length and
– unlocked or
– locked and not set down.
