Crane operation
11.5 Crane operation with main boom
11 - 102 3 302 709 en Operating manual
GMK5150L
12.01.2018
Current telescoping

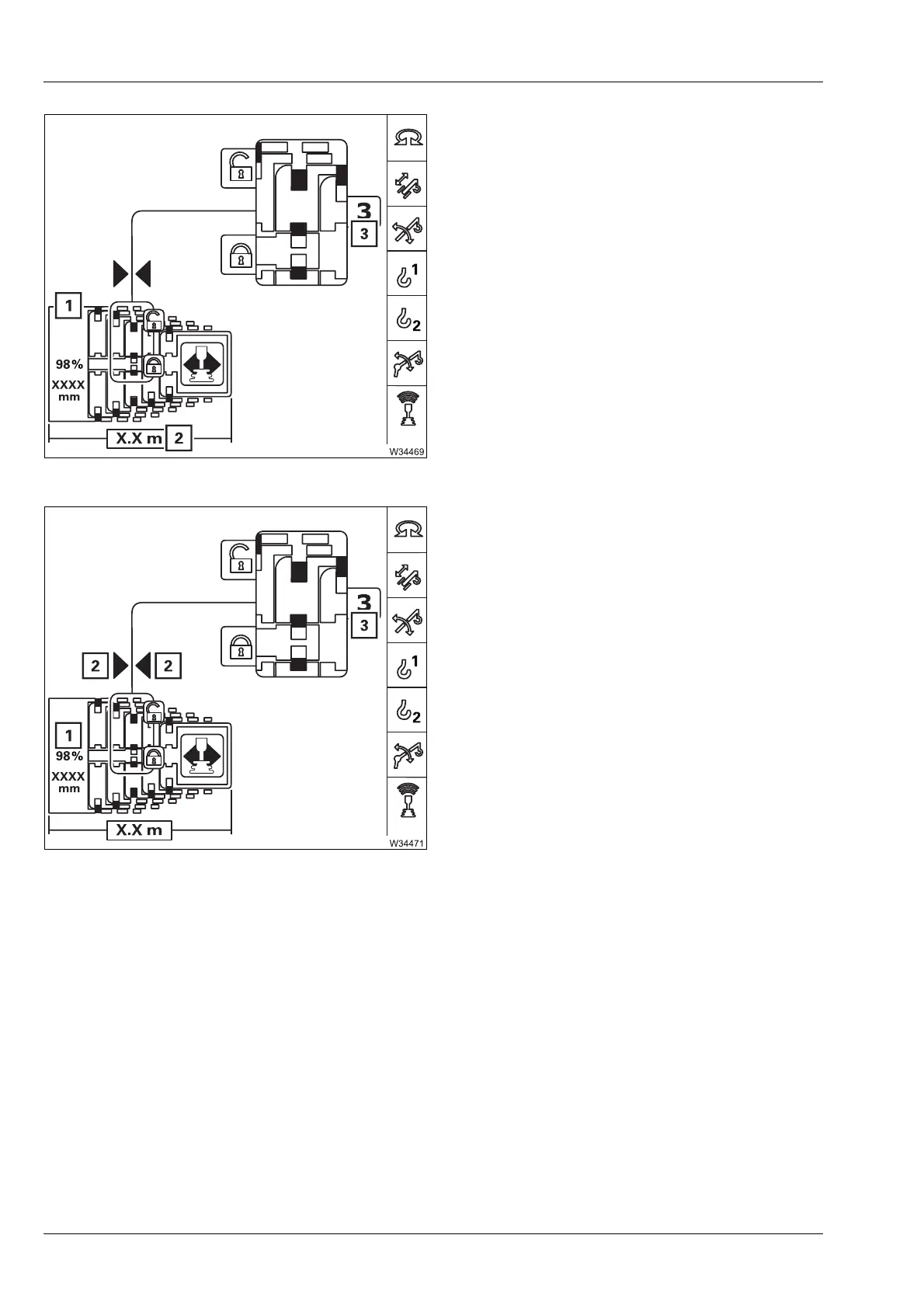

The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
The display (2) shows the current main boom
length.
The display (3) shows the corresponding
telescopic section, for example, telescopic
section
3.
Position of the telescoping cylinder
The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
If the telescoping cylinder is near a locking
point:
– The display (3) shows the corresponding
telescopic section, for example, telescopic
section
3.
– The display (2) shows one or two arrows,
depending on the distance to the locking
point.
