Crane operation
11.5 Crane operation with main boom
Operating manual 3 302 709 en 11 - 103
GMK5150L
12.01.2018

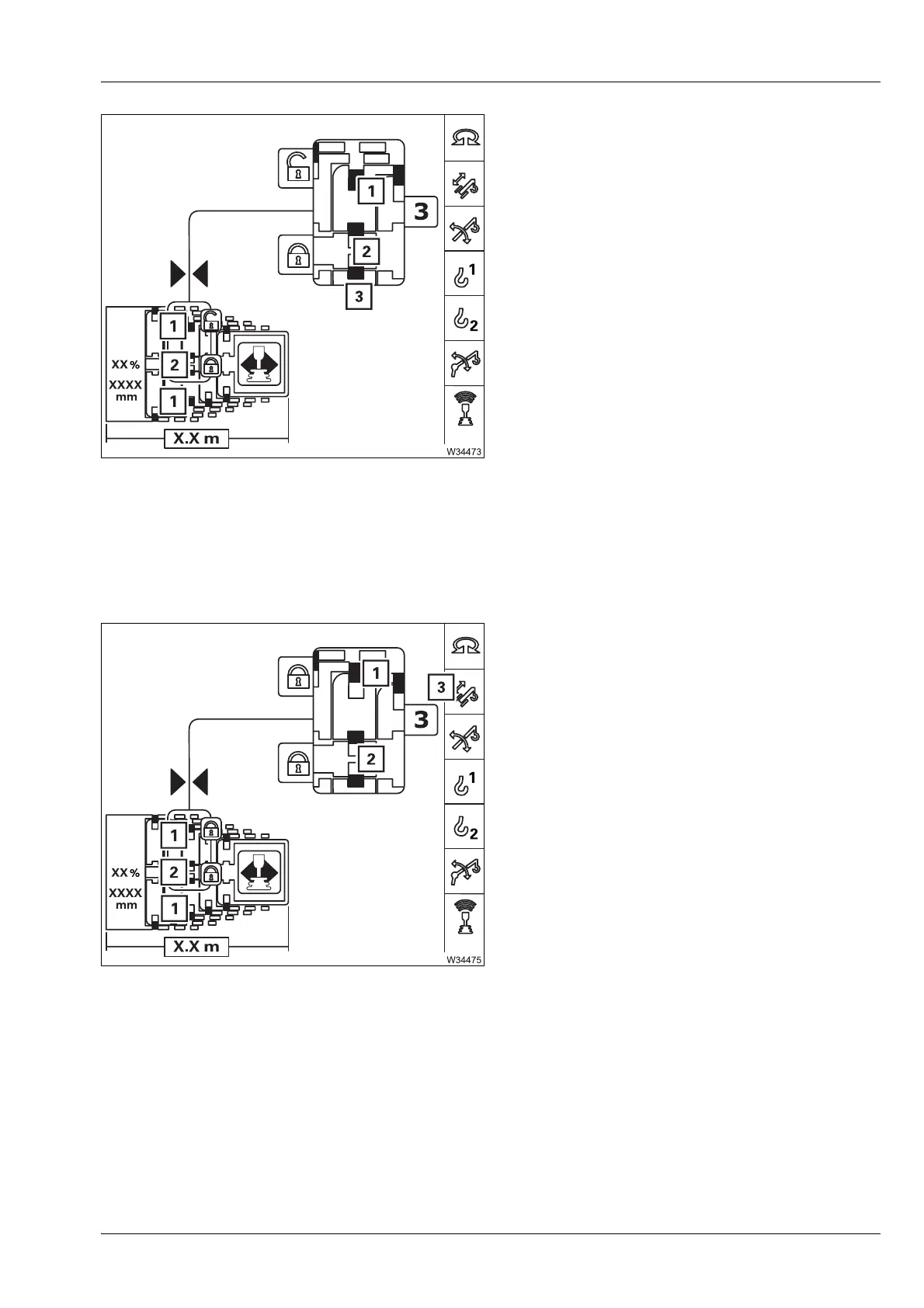

Position of the locking pins
The current positions of the locking pins are:
The area (3) shows an enlarged cut-out.
The current settings are shown in different
colours.
Unlocking the tel-
escoping cylinder
Unlocking the telescoping cylinder is required for the telescoping cylinder
to be moved separately (without telescopic section).
The telescoping cylinder and the telescopic section cannot be unlocked
simultaneously.
Prerequisites
– Telescoping mechanism on – symbol (3)
green
– Telescoping cylinder locked – symbol (2)
green
– Telescopic section locked – symbol (1)
green
s
1 On the telescopic section
2 On the telescoping cylinder
–Red: Unlocked
–Green: Locked
– Yellow: Intermediate position
