Manitowoc GROVE GMK5150L User Manual

Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
12 - 38 3 302 709 en Operating manual
GMK5150L
12.01.2018

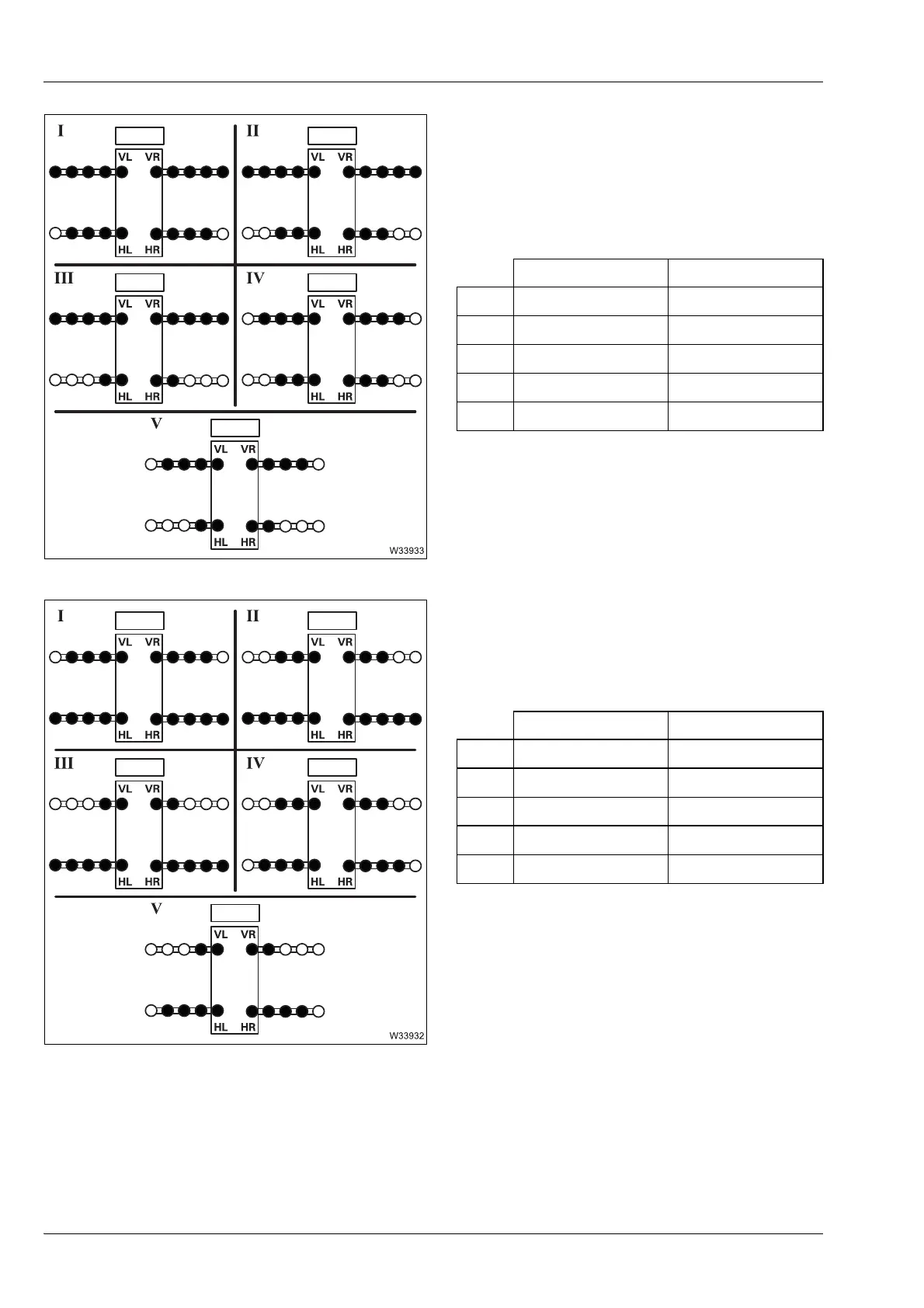

Front / rear
– Front greater than rear
The front outrigger beams are extended fur-
ther than the rear outrigger beams. The table
shows the permissible combinations.
– Rear greater than front
The rear outrigger beams are extended further
than the front outrigger beams. The table
shows the permissible combinations.
FR / FL RR / RL
I
3.800 m (12.5 ft) 3.350 m (11.0 ft)
II
3.800 m (12.5 ft) 2.950 m (9.7 ft)
III
3.800 m (12.5 ft) 2.550 m (8.4 ft)
IV
3.350 m (11.0 ft) 2.950 m (9.7 ft)
V
3.350 m (11.0 ft) 2.550 m (8.4 ft)
FR / FL RR / RL
I
3.350 m (11.0 ft) 3.800 m (12.5 ft)
II
2.950 m (9.7 ft) 3.800 m (12.5 ft)
III
2.550 m (8.4 ft) 3.800 m (12.5 ft)
IV
2.950 m (9.7 ft) 3.350 m (11.0 ft)
V
2.550 m (8.4 ft) 3.350 m (11.0 ft)
