Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 57
GMK5150L
12.01.2018
From the
control units
Starting the engine
• Start the engine, either
– from the driver's cab;
à p. 4 - 13
or
– from the control units;
à p. 12 - 27.

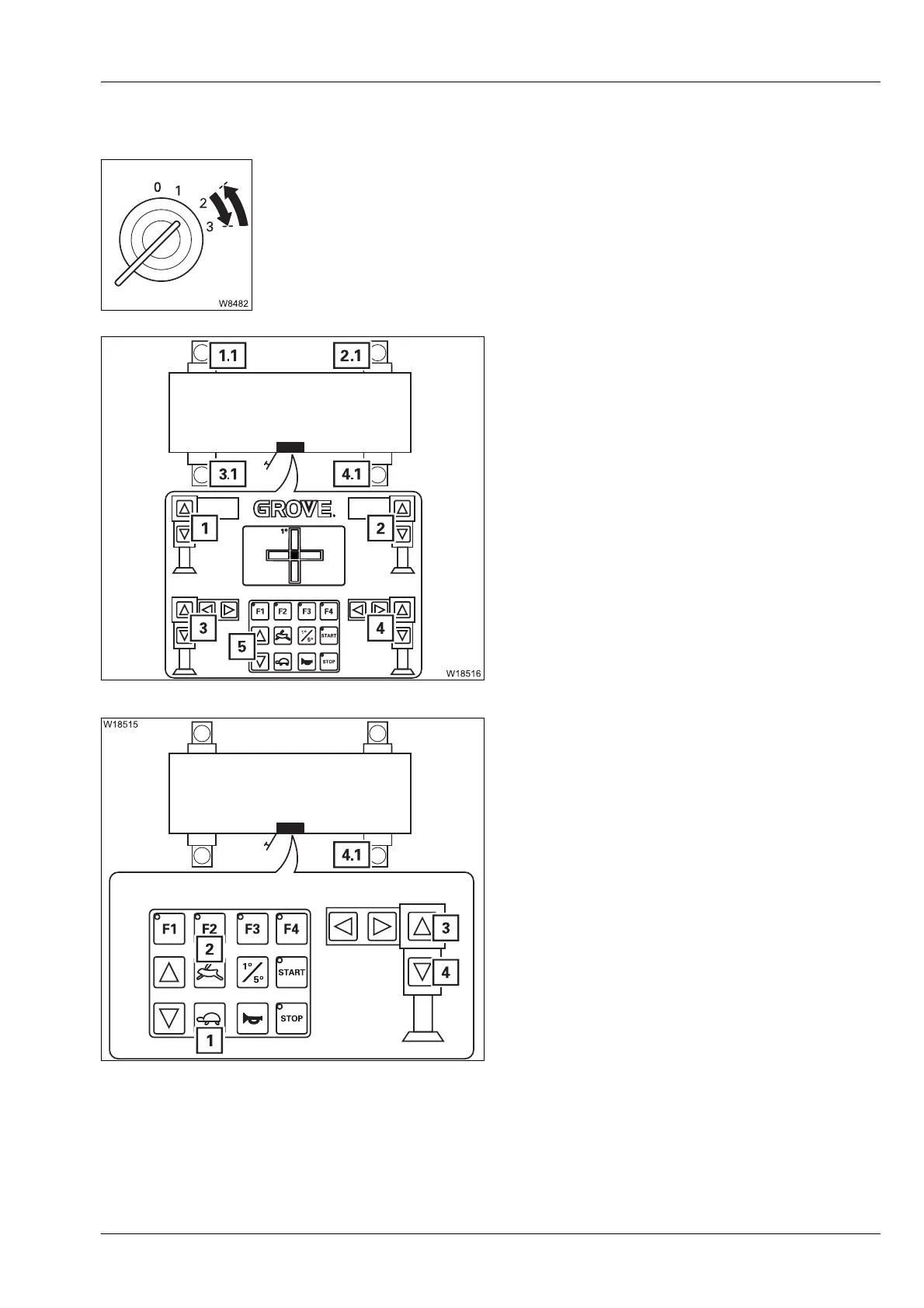

Moving the supporting cylinders
Assignment of buttons:
• Observe the safety instructions for operat-
ing the supporting cylinders;
à p. 12 - 56.
The operation is the same for all supporting
cylinders.
• Press the button
• Also press the button for the desired
supporting cylinder, e.g. for 4.1.
You can also operate several supporting
cylinders at the same time.
The supporting cylinders move until you let go of the respective button or
until the respective end position has been reached.
s
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
1 For normal speed
2 For high-speed mode.
3 For retracting
4 For extending
