Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 59
GMK5150L
12.01.2018

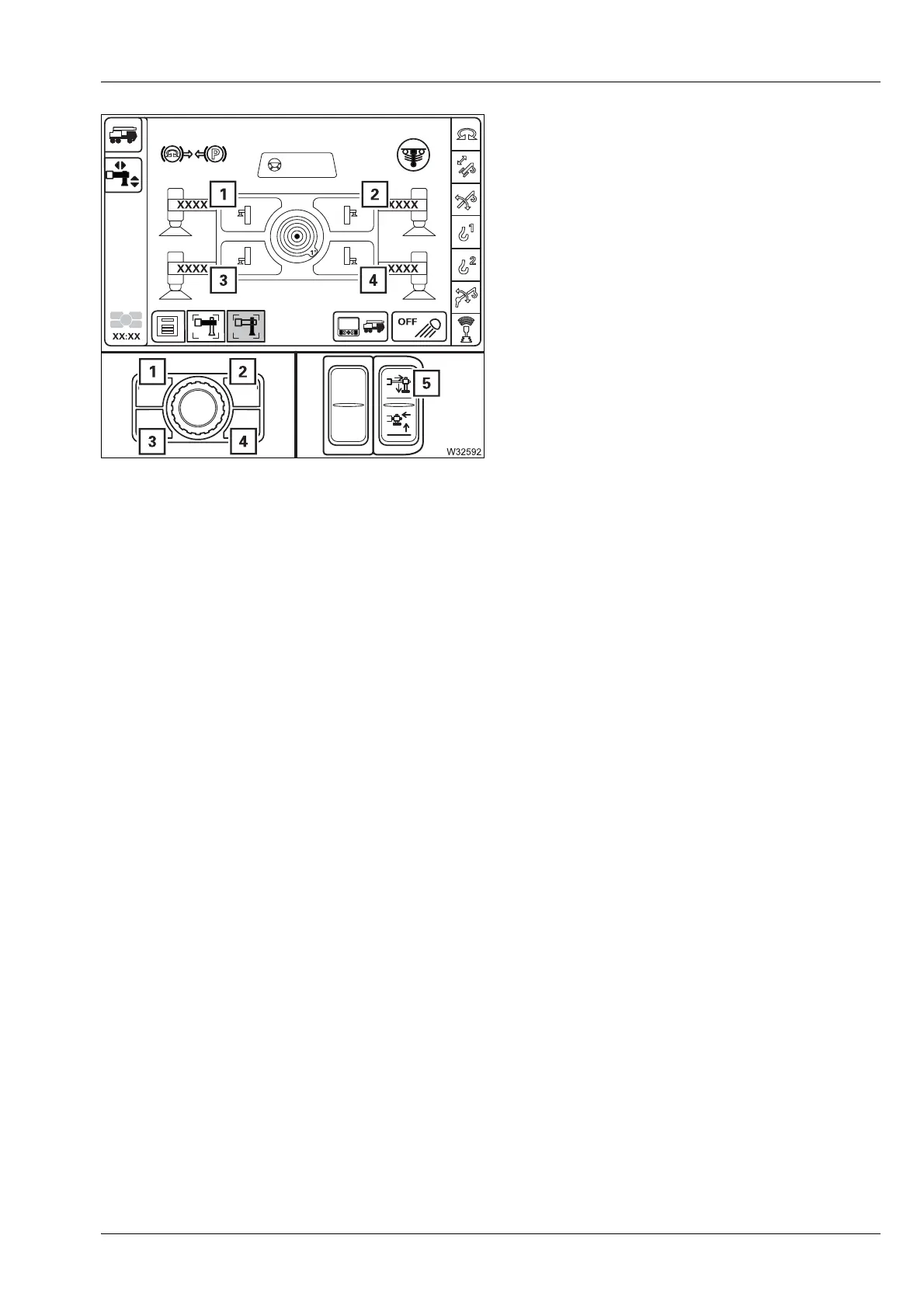

Retracting
• Press the button for the desired outrigger
cylinder.
• Press the button (5) in at the bottom – the
selected supporting cylinder retracts.
1 Front left
2 Front right
3 Rear left
4 Rear right
