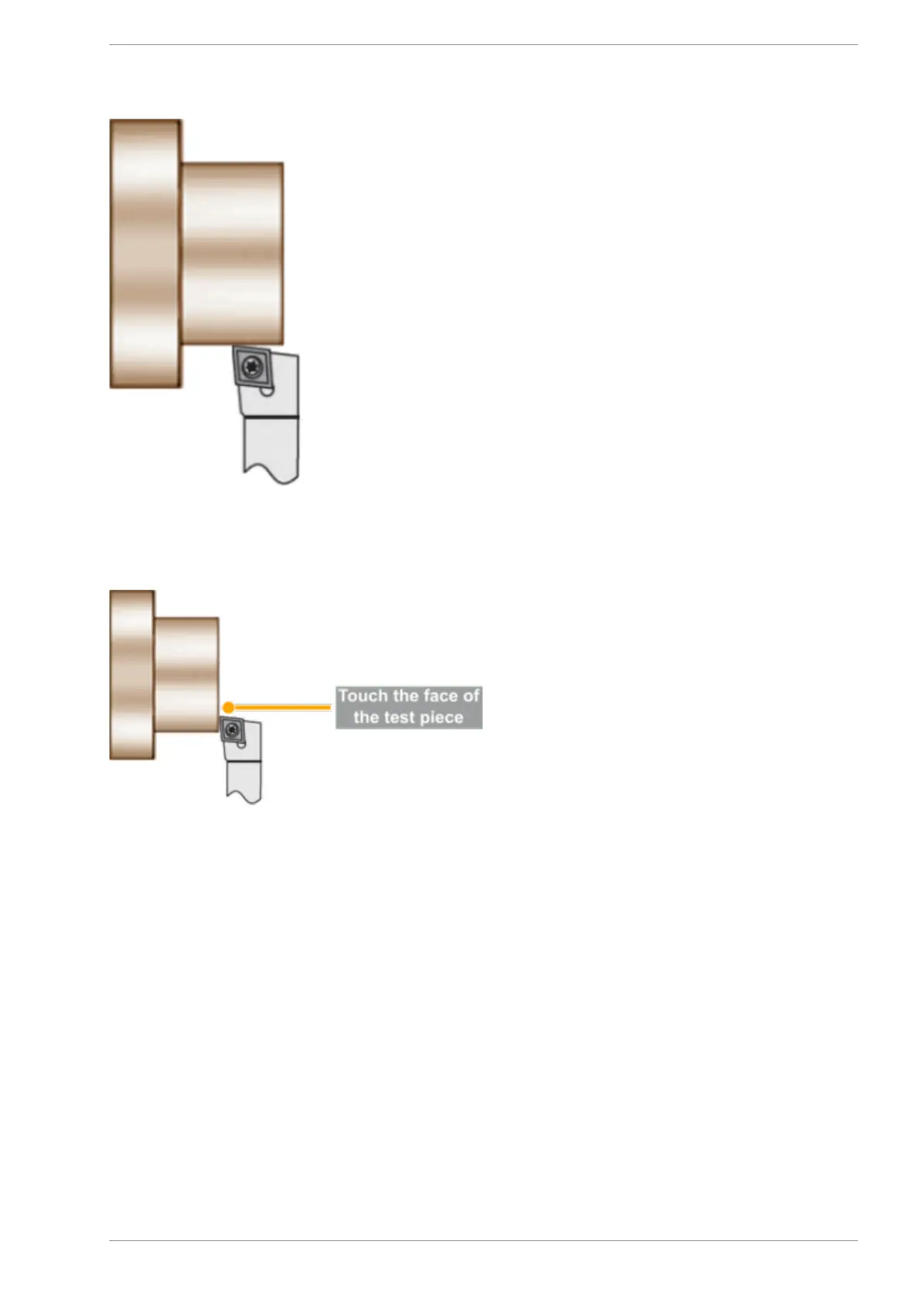

Step 3: Go to F3 – Jog/Rapid screen and touch the tool to the front face of the test piece.

Step 4: Go to F4-Tools & Work Offset screen and open the tool number you want to calibrate.

v5.18 - 08 Apr,2021

www.masso.com.au Page 120 of 477
