11.5.1. Bosch Rexroth VFD

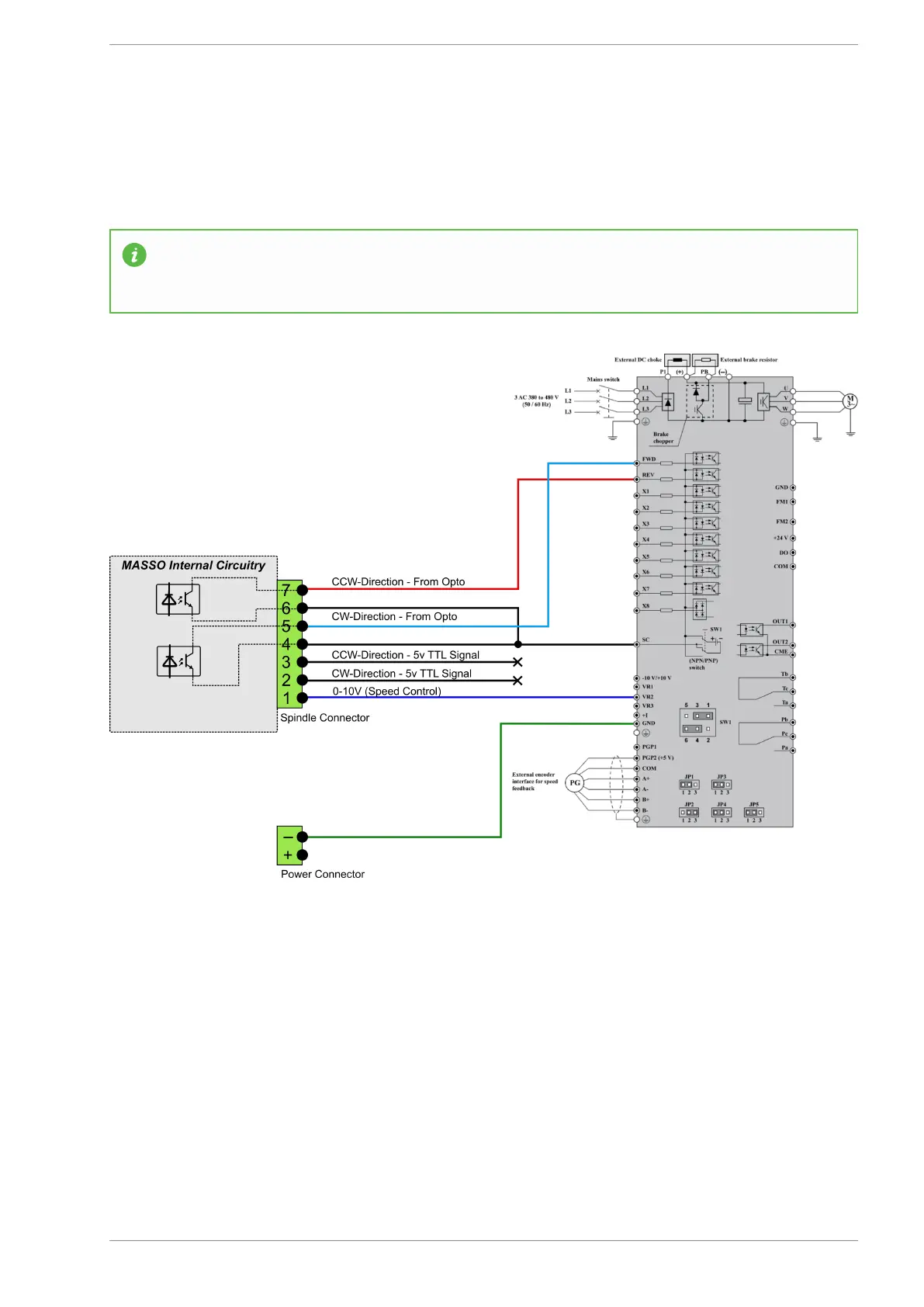

Bosch Rexroth VFD wiring example
INFORMATION:
As VFD's have different control parameters, the VFD must be first properly
configured to take 0~10v control signals, wiring the VFD alone will not make it work with the
controller.
v5.18 - 08 Apr,2021
www.masso.com.au
Page 305 of 477
