14. Tool Setter / Touch Plate
A tool setter or a simple touch plate can be wired to MASSO to be used with
interactive part probing or
with G38.2 probing cycle gcode command.
INFORMATION: For information about interactive part probing CLICK HERE
INFORMATION: For information about using G38.2 probing cycle CLICK HERE

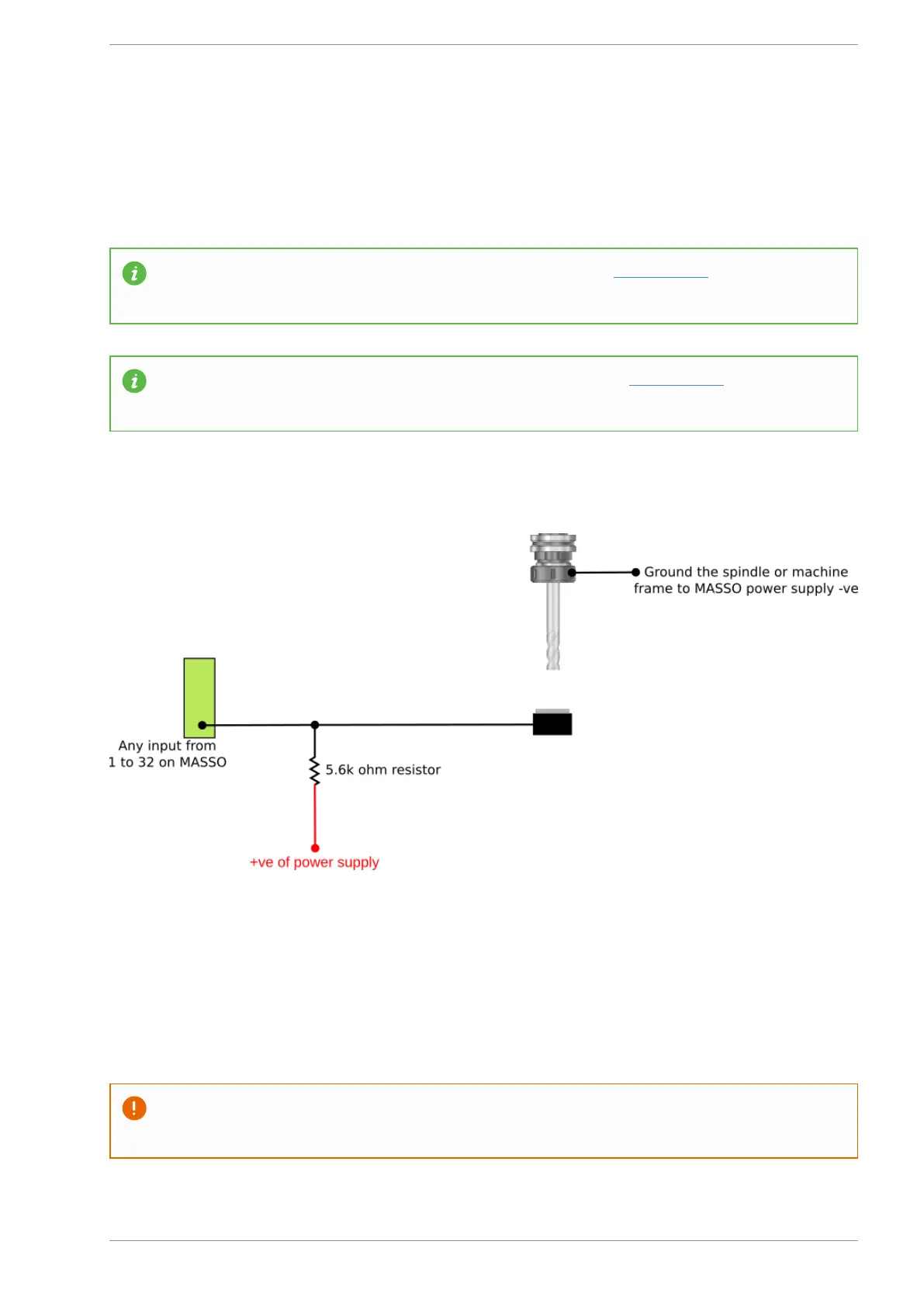

Wiring example of a simple touch plate
Assigning the probe input
Once the probe has been wired to one of the MASSO inputs, go to the F1 - Setup screen and assign the
input as Probe Input Signal.
CAUTION: The input status must show LOW when the probe is not touched and should only show
HIGH when triggered.
