11.8. Axis Calibration
Once all the electrical connections have been done, the system can be calibrated. Axis calibration can be
done in the following simple steps:

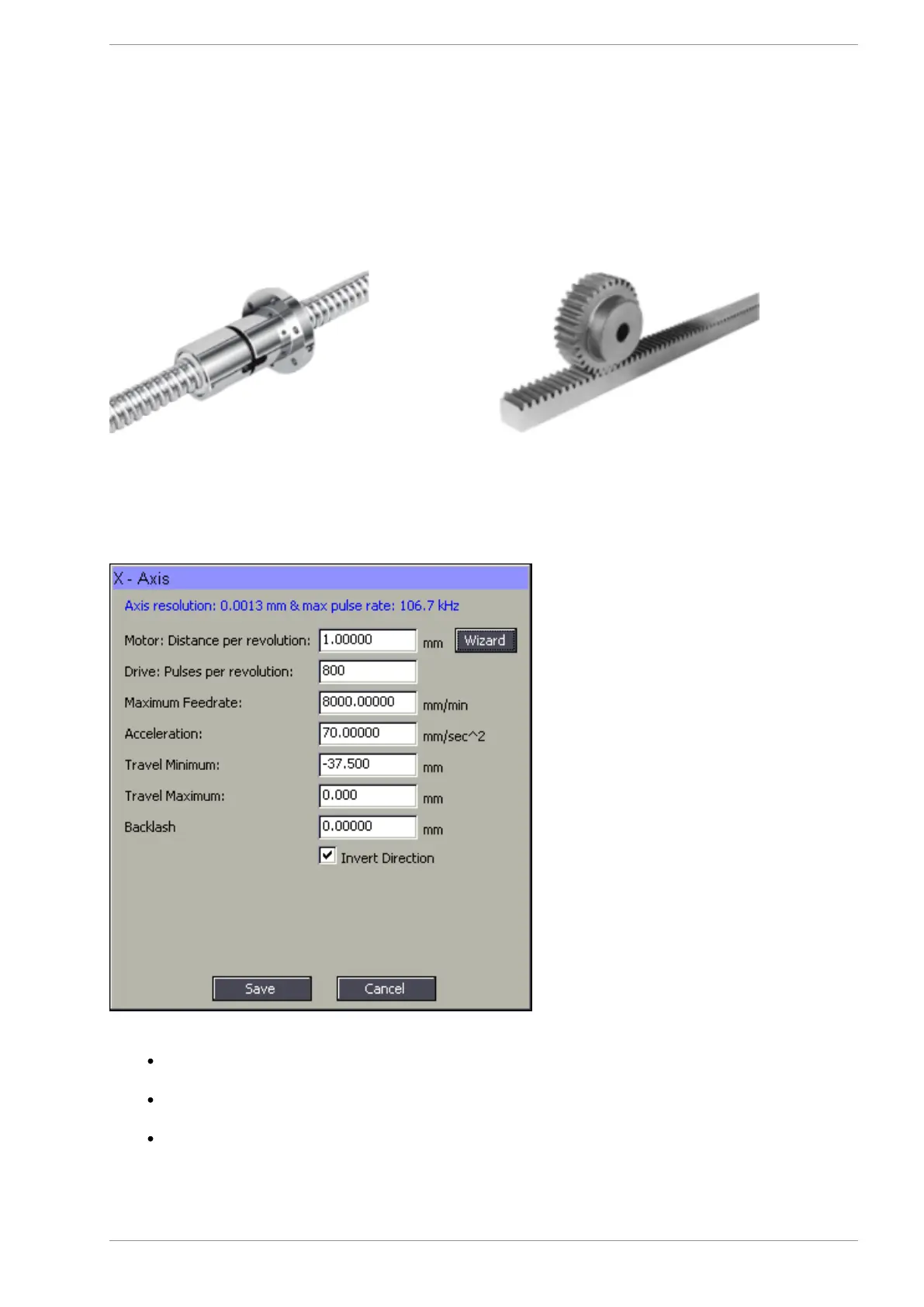

Motor: Distance per revolution
First note down the pitch of your ball screw. Pitch defines how much the ball nut moves when the ball
screw is turned exactly one full rotation.
In the F1-Setup screen, open the axis setup window and enter the ball screw pith in the Motor:
Distance per revolution box.
If the machine axis moves are controlled using timing belts or has a rack and pinion type setup then
enter the amount of axis movement when the motor shaft is turned exactly in one full rotation. If this
value is unknown or hard to calculate then the calibration wizard can be used which is explained on
