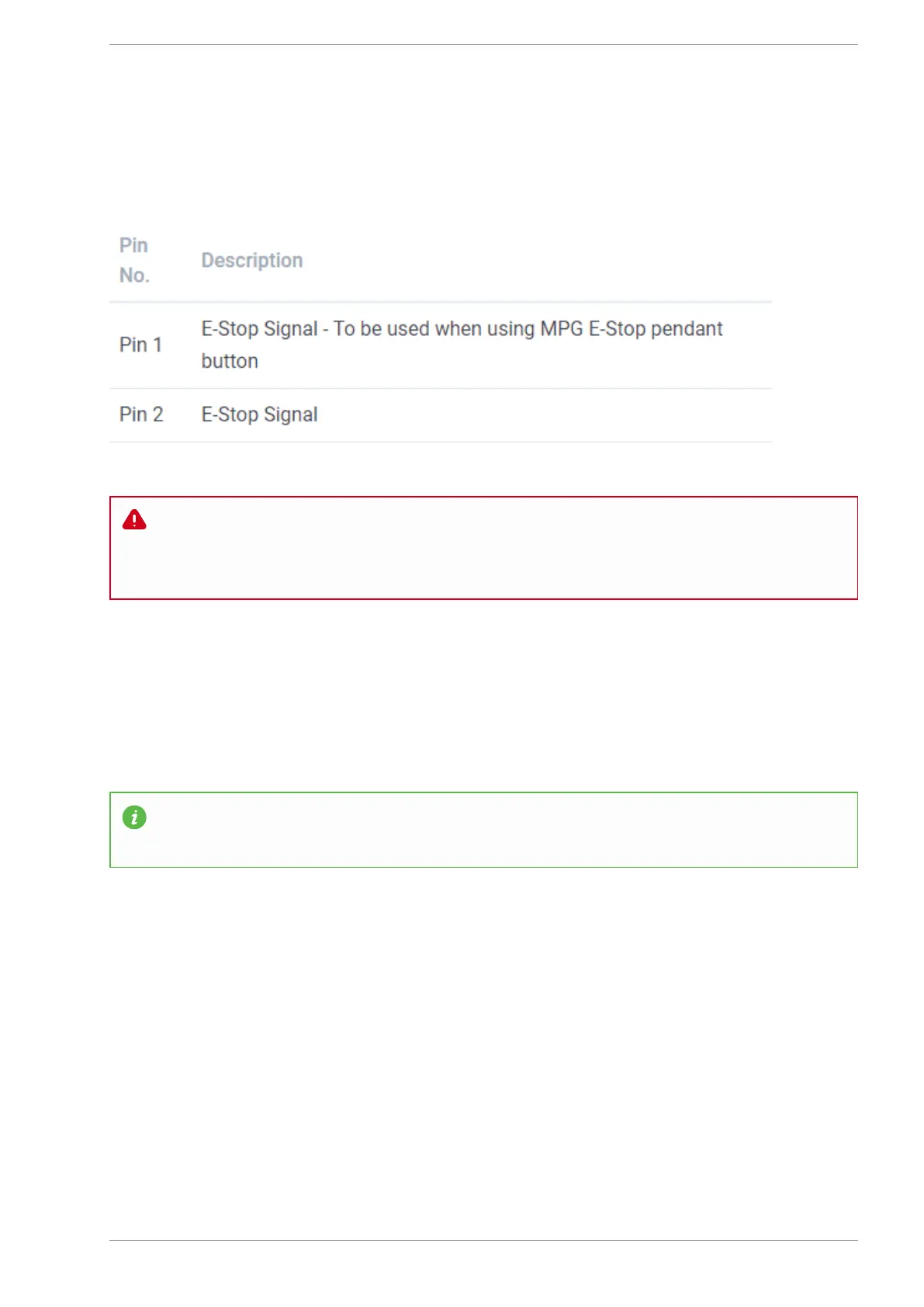

11.2. E-Stop Wiring
WARNING: To avoid damage to equipment or hazard to personnel, the system installer should
wire the E-Stop button so that pressing the E-Stop button disables all drives and actuators on the
machine. The E-Stop relay output on the MASSO should be wired to disable the axis drives and
the spindle drive circuits.
Simple one E-Stop button wiring
The below wiring example shows how to wire and use only one E-Stop button. The E-Stop button is wired to
ESTOP terminal Pin 2.
INFORMATION: In the below example E-Stop button on the MPG will not work.
v5.18 - 08 Apr,2021
www.masso.com.au Page 272 of 477
