22. REVO CNC

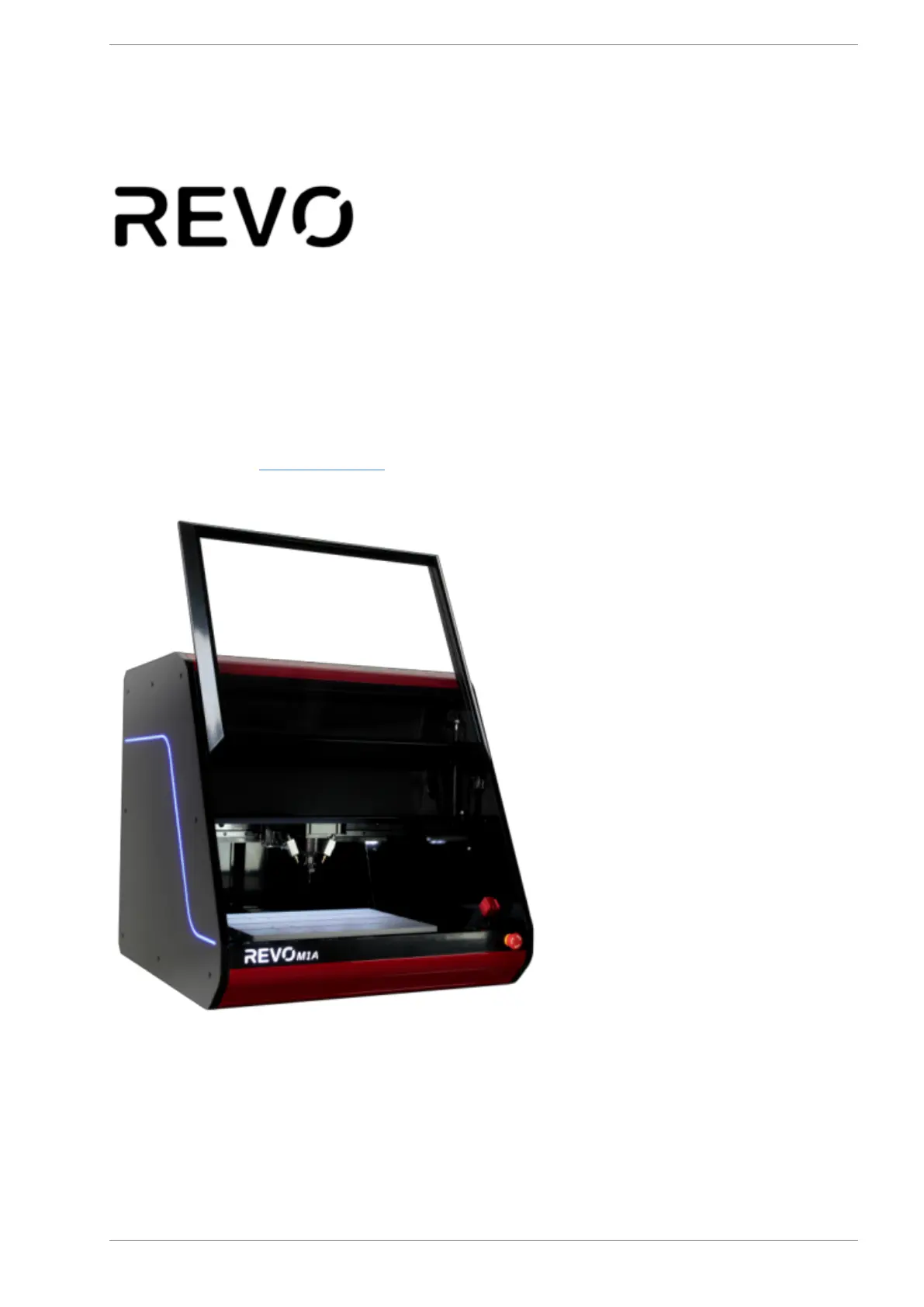

REVO manufactures high-quality CNC routers in Turkey.

The machines are built on a rigid platform and with high-quality parts that give exceptional cut quality and

speed.

Visit REVO's website www.revo.com.tr

v5.18 - 08 Apr,2021

www.masso.com.au Page 468 of 477
