11.3.2. Gecko G340

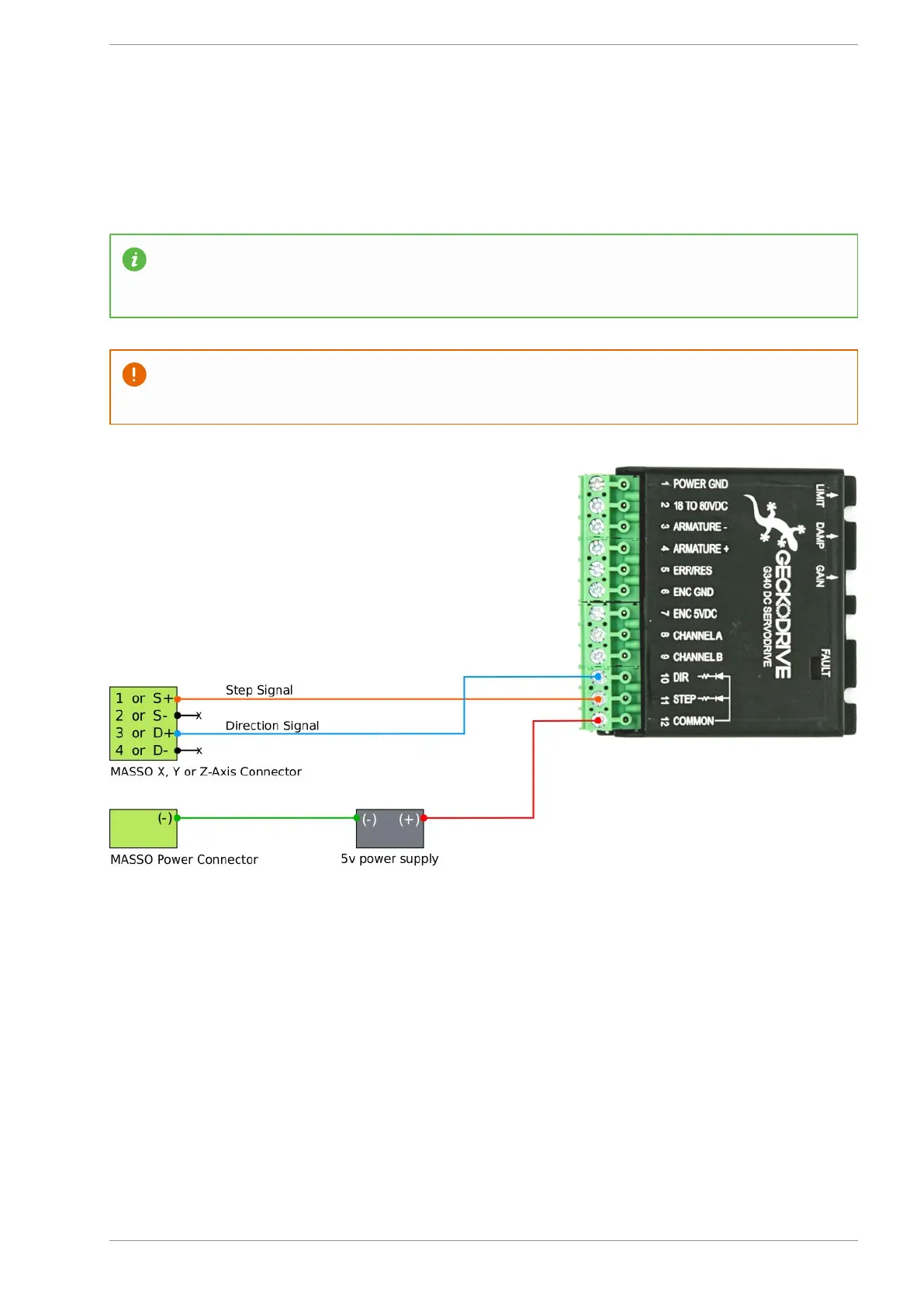

Gecko Drive G340 wiring example
INFORMATION: As the Gecko G340 uses a common positive signal, the COMMON pin must be
connected to a positive power supply and the negative of both power supplies must be connected
togteher to complet the ciruit.
CAUTION: The “x” sign means do not connect.
