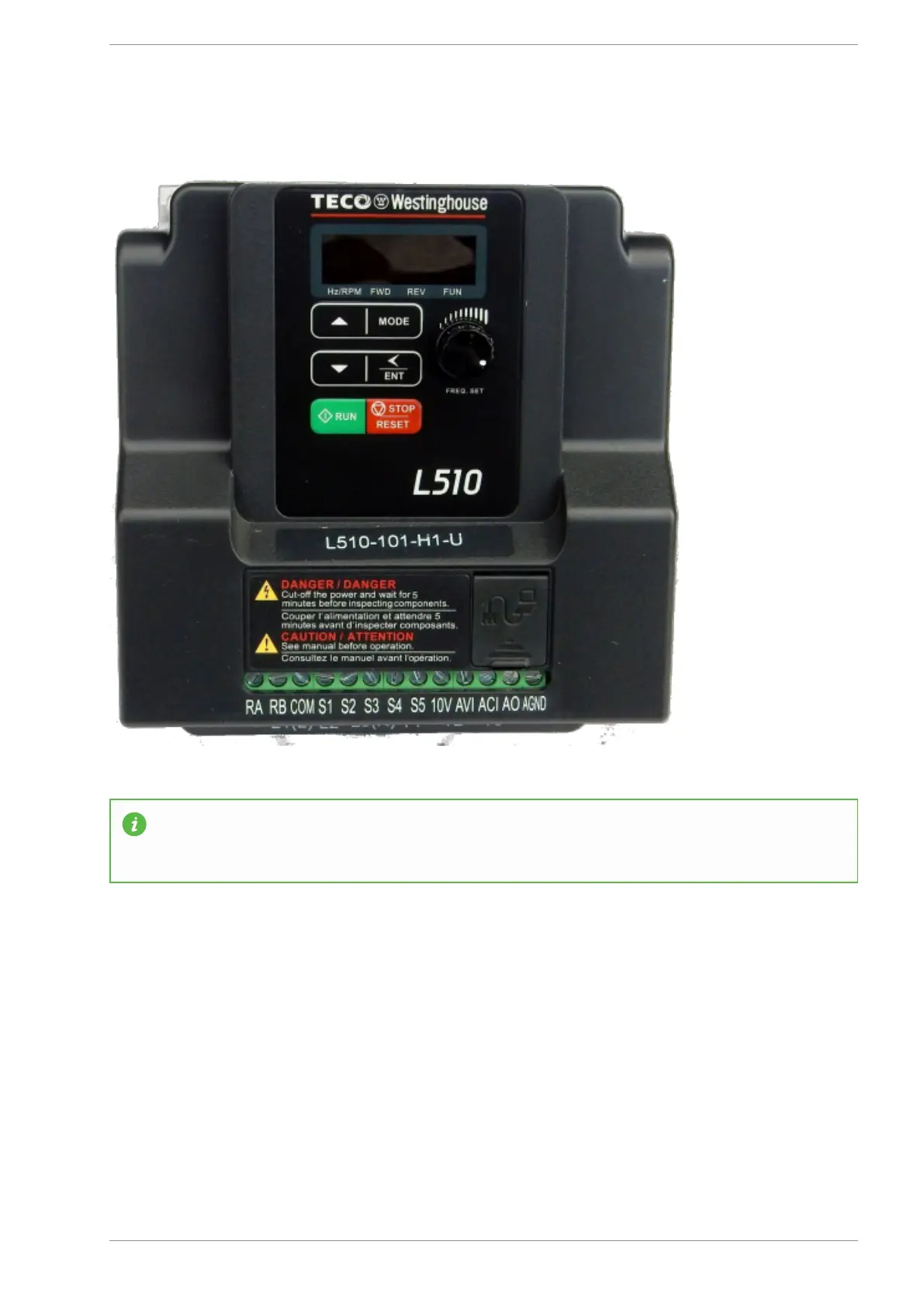

11.5.8. TECO Westinghouse VFD
INFORMATION:
As VFD's have different control parameters, the VFD must be first properly
configured to take 0~10v control signals, wiring the VFD alone will not make it work with the
controller.
