Wiring only one E-Stop on MPG pendant

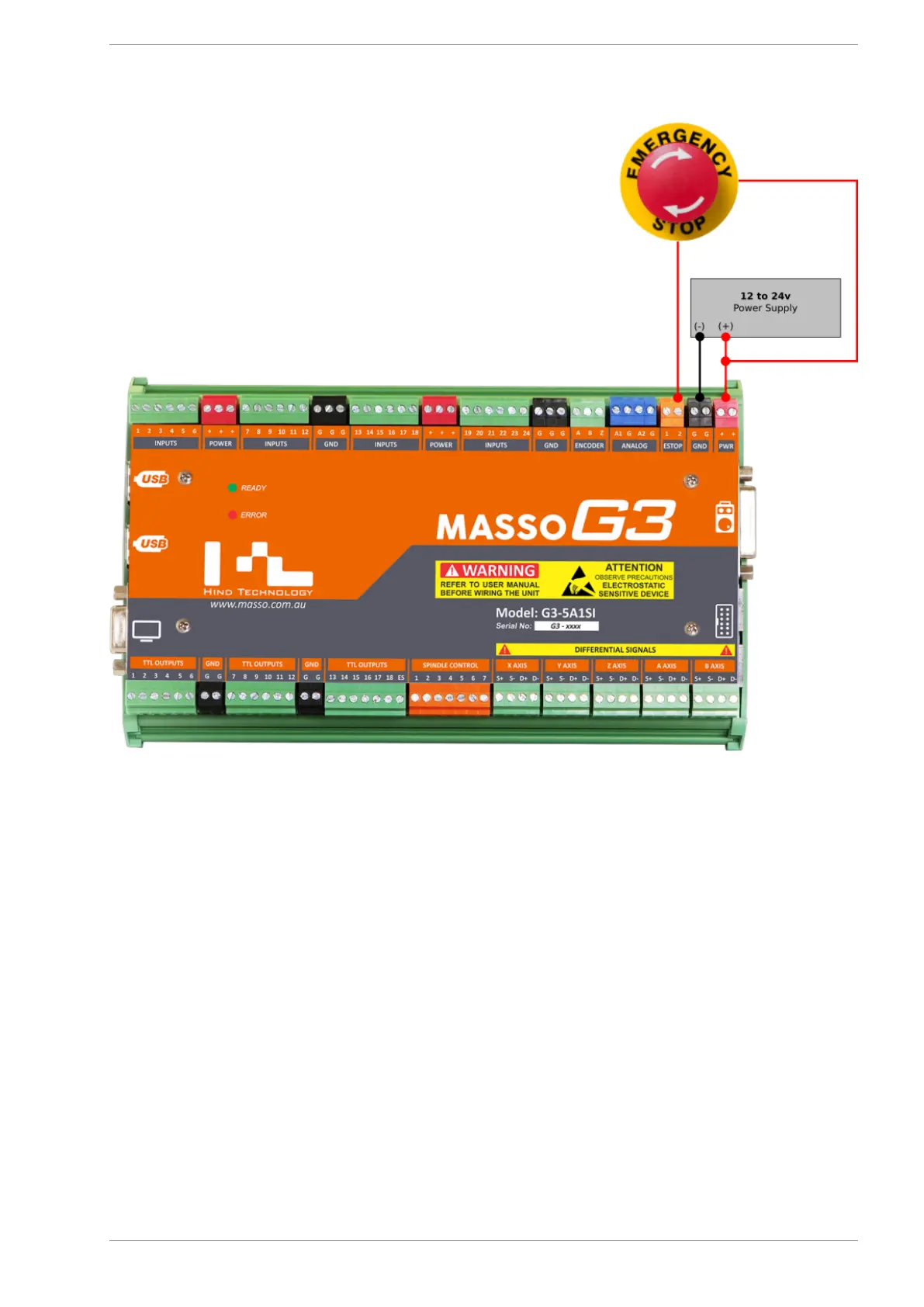

The below wiring example shows how to wire and use only the E-Stop button on the MPG pendant. Pin 1 on

the ESTOP terminal is wired to positive of the power supply to get the MPG E-Stop button working.
