Wiring multiple E-Stop buttons and MPG pendant E-Stop button

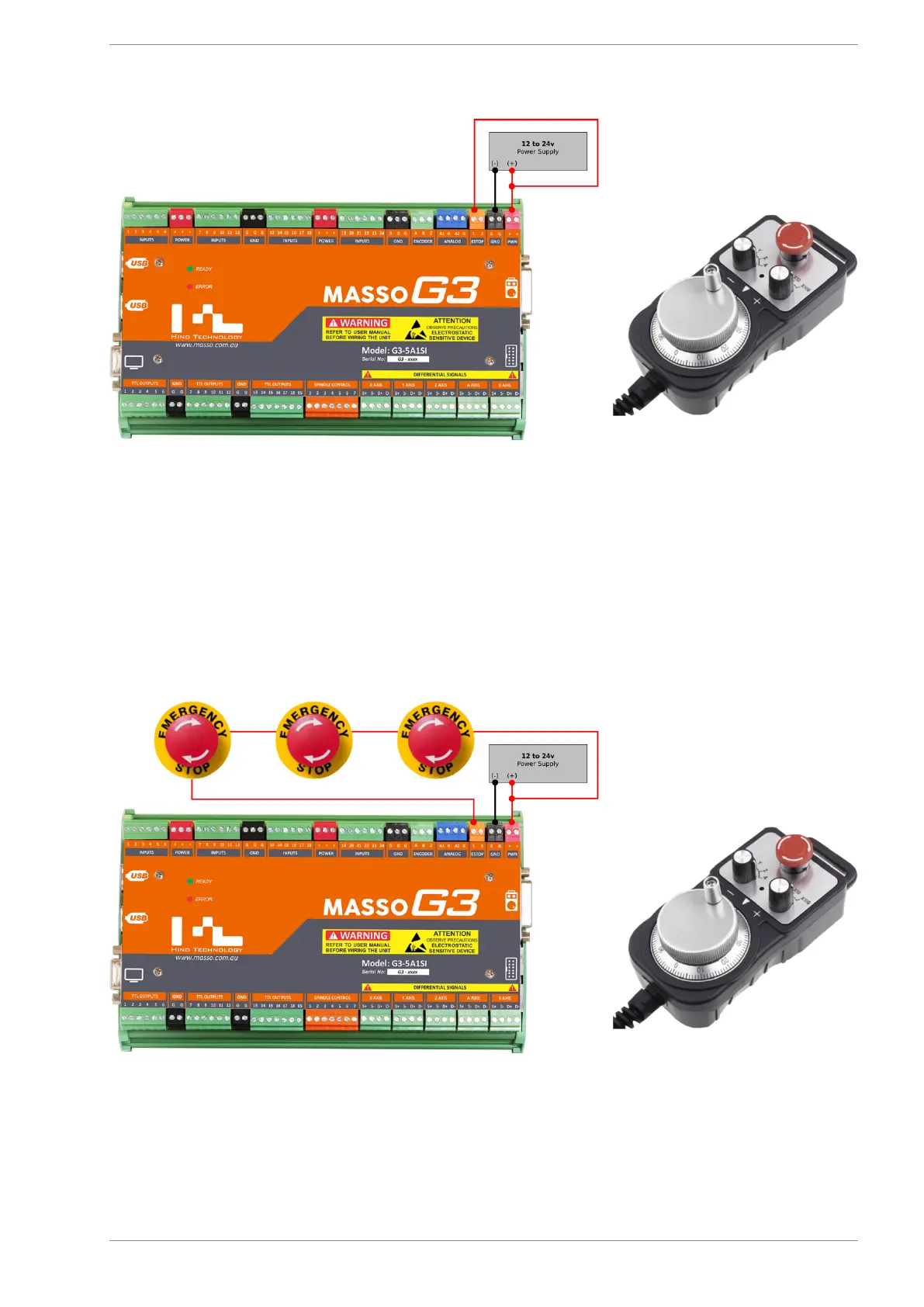

The below wiring example shows how to wire and use multipe E-Stop buttons and MPG pendant E-Stop
button. All E-Stop buttons are wired in series to Pin 1 on the ESTOP terminal through the positive of the
power supply. When any of the three external E-Stop buttons or MPG pendant E-Stop button is presses,
MASSO will display an E-Stop alarm on the screen and the "ES" (E-Stop output) singnal will go LOW.
Wiring E-Stop output signal to relay
v5.18 - 08 Apr,2021
www.masso.com.au Page 274 of 477
