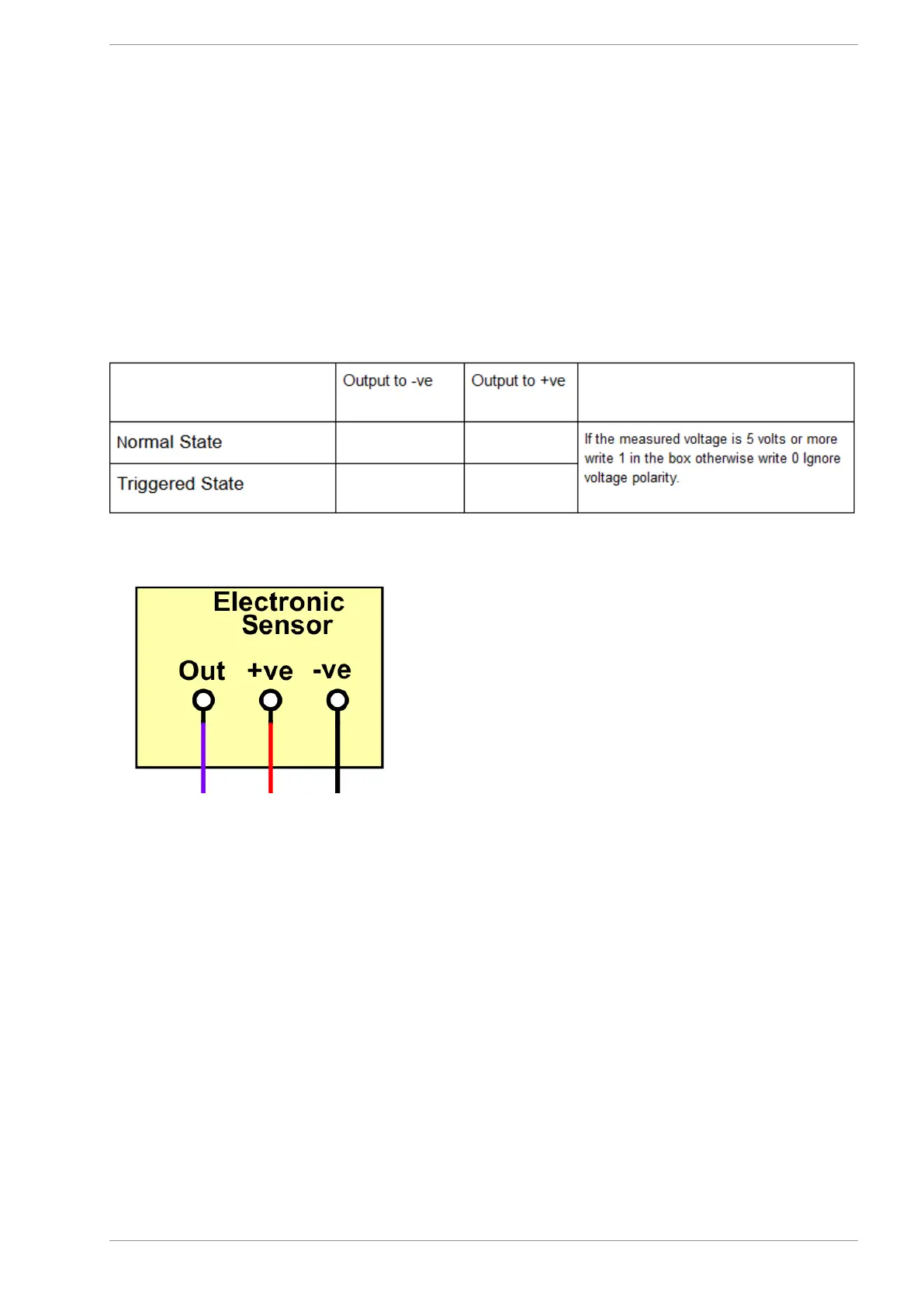

record the results in the table below. If the voltage is greater than 5 volts record a 1 otherwise record a 0.
Ignore the polarity shown on the meter.
Step 3: Trigger the sensor and measure the voltage between the output & +ve and the output &-ve record
the results in the table below. If the voltage is greater than 5 volts record a 1 otherwise record a 0. Ignore the
polarity shown on the meter.
Electronic Homing Switch Matrix
Step 4: Find the matching table below and use the wiring diagram and input configuration indicated.
Sensor Types and Wiring
Type 1
