Example program for making an Spiral
N10 G00 X20 Y10 Z0 N20 G03 X50 Y40 Z-0.5 I0 J30
In the above example in the first line moves to position X20 Y10 Z0

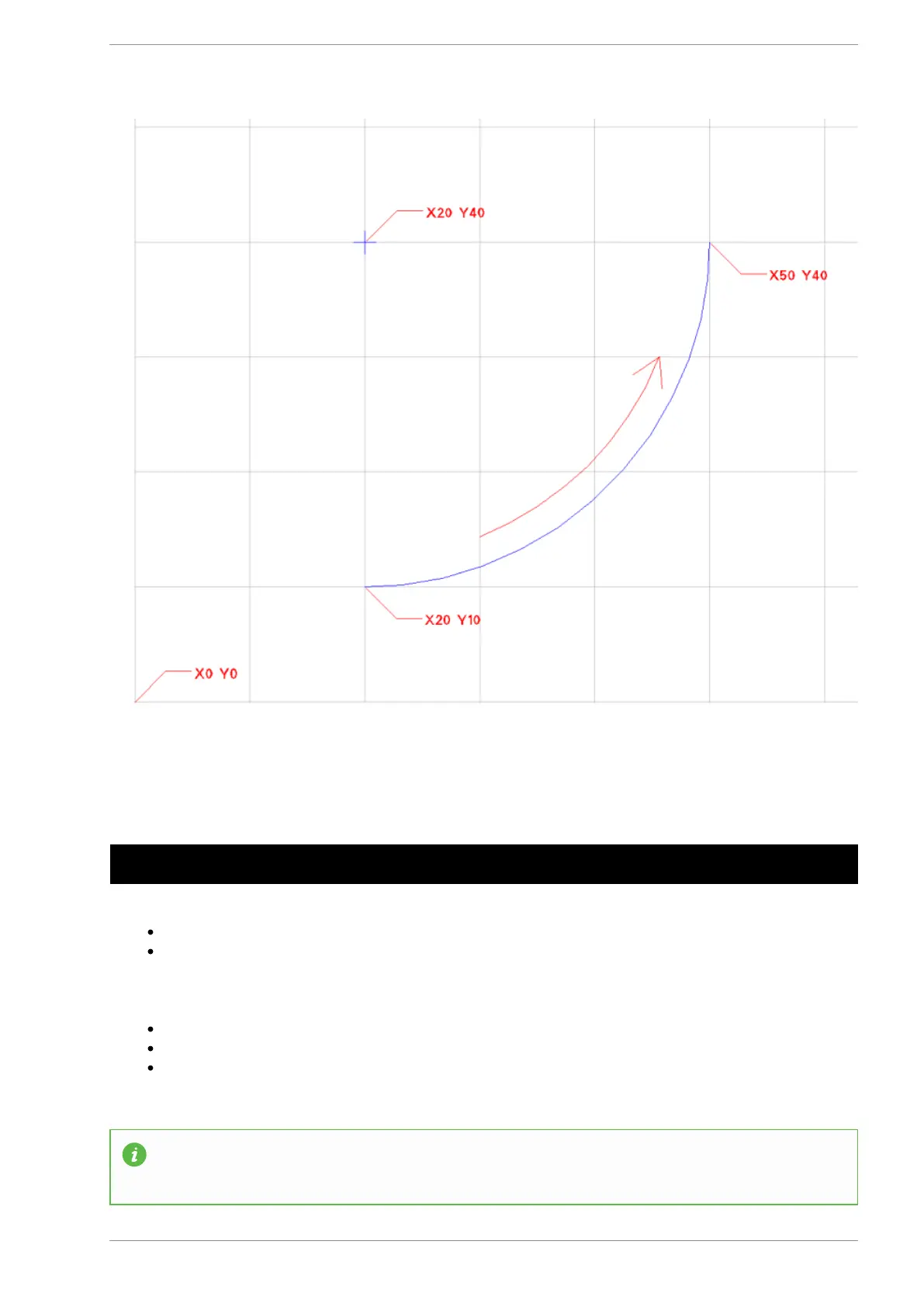

An arc is made starting at position X20 Y10 and ending at coordinate X50 Y40 with center at position
X20 Y40 moving in a counter clockwise direction. The arc is the same as in the diagram above but
the Z axis will decend from its current height to -0.5 units at a uniform rate over the arc to form a
spiral path.
The Arc centr is calculated as follows
Starting position X20 + I0 = Center X coordinate X20
Starting position Y10 + J30 = Center Y coordinate Y40
INFORMATION: Units are defined as either inches or mm depending on your machines setup or
G20 or G21 command in use.
v5.18 - 08 Apr,2021
www.masso.com.au Page 199 of 477
