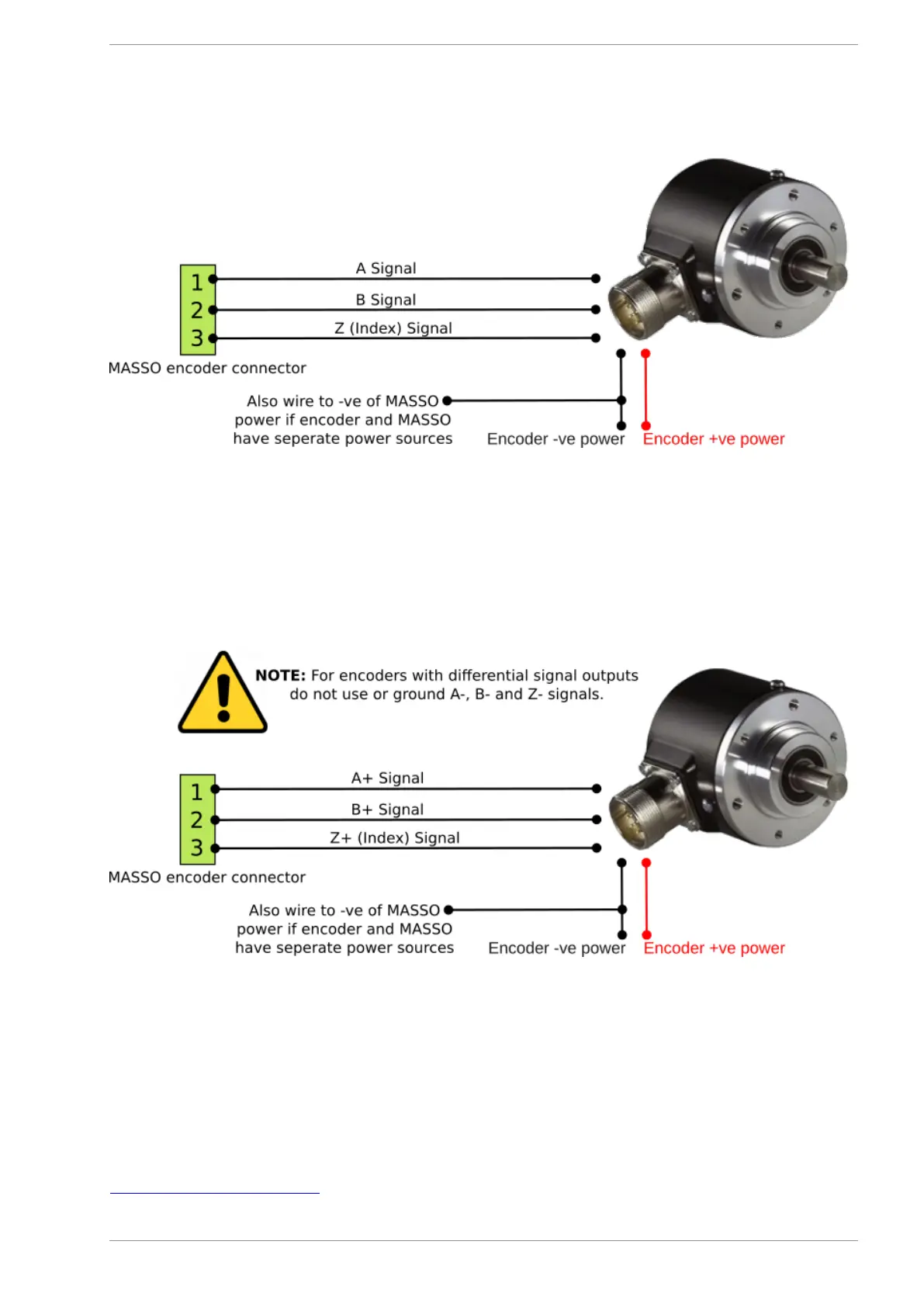

Differential / Line Driver output signal wiring example
Maximum Encoder Frequency
To confirm that the encoder frequency will be within the Masso maximum pulse frequency please use the
Encoder Frequency Calculator
Encoder Frequency Calculator
v5.18 - 08 Apr,2021
www.masso.com.au
Page 382 of 477
