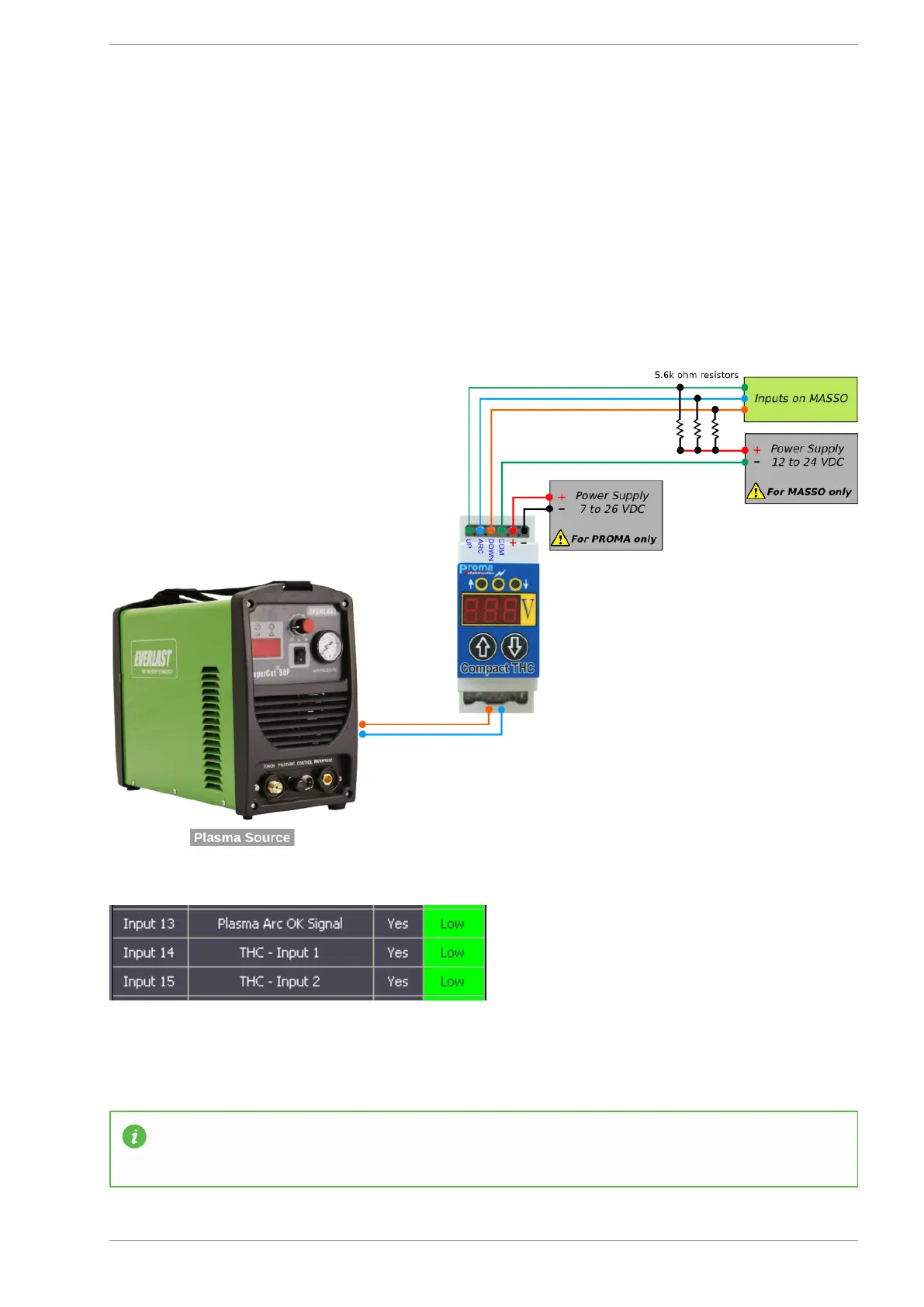

hard off and again the chance of noise entering the input is greatly reduced. By wiring it in this manner the
inputs will have very high noise immunity. When wiring in this manner use 1/4W or higher resistors and do
not leave them out and connect the +ve direct to the inputs or you will damage your THC and possibly
MASSO. Actual resistance values may need to be decreased slightly depending on the type of switch used
in the THC. The values shown are correct for mechanical relay output and may need to be changed for use
with solid state switches within the THC.
Consult your user manual for more details and the best method to connect your THC.
It is recommended a separate power supply is used to power the THC.
THC input settings. Note these are inverted.
INFORMATION: To invert the logic of an input select the input and press the space bar to reverse
the logic.
