25 - 16

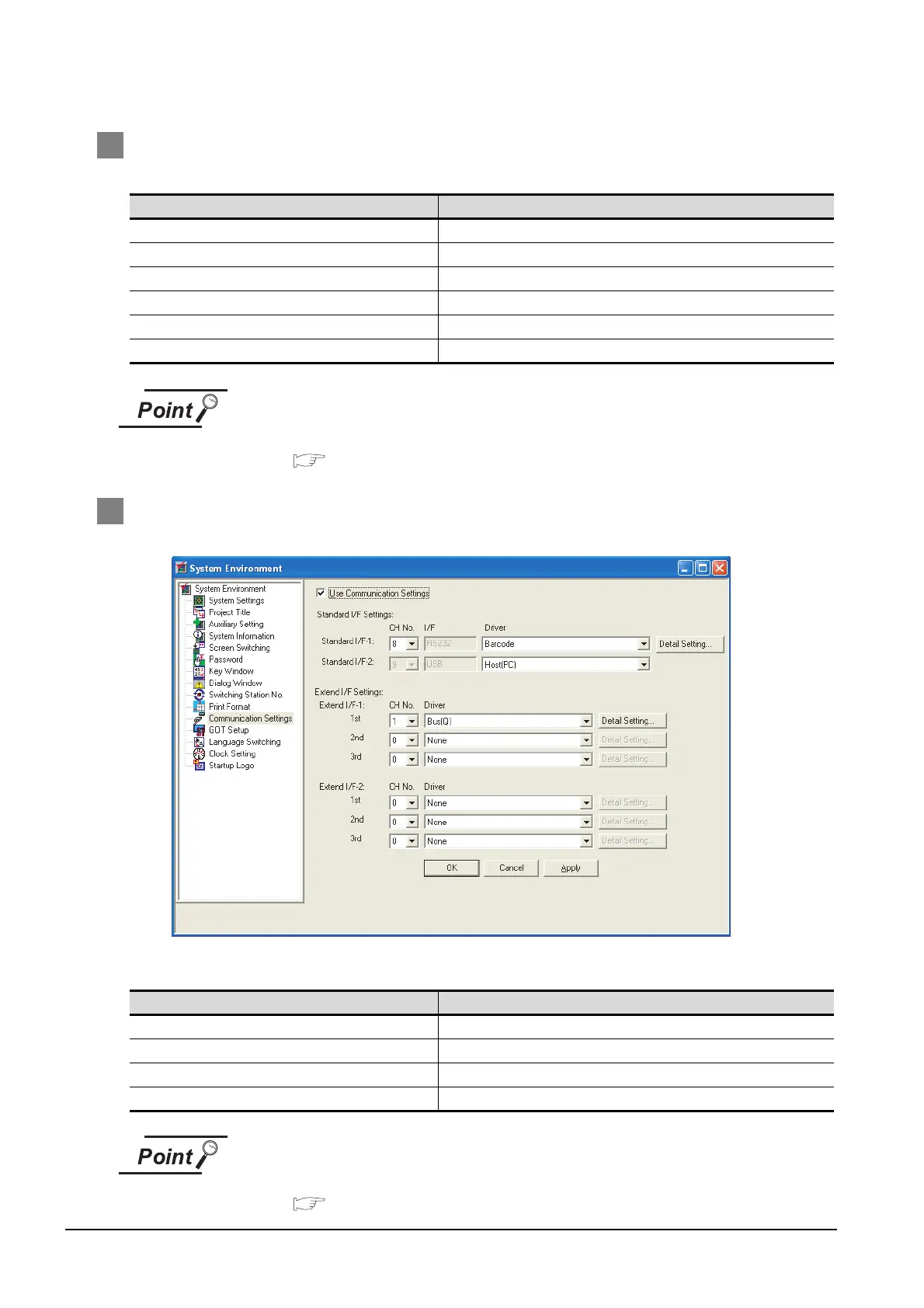

25.4 System Configuration Examples

2 Bar code reader setting

The bar code reader shall be configured as shown below.

Bar code reader setting

For the bar code reader setting, refer to the following manual.

The User’s Manual of the bar code reader you are using

3 "Communication settings" in GT Designer2

(1) Communication settings

(2) Barcode

Keep consistency with the bar code reader setting.

"Communication settings" in GT Designer2

For the "Communication settings" in GT Designer2, refer to the following.

Section 25.2.3 Setting communication interface (Communication settings)

Item Setting

Baud rate 9600bps

Data length 8bit

Stop bit 1bit

Parity Even

Header None

Terminator CR

Item Setting (Use default value.)

Transmission Speed 9600bps

Data Bit 8bit

Stop Bit 1bit

Parity Even
