(4) RS-422 cable 4)
• Connect a terminating resistor (100 ohm) to RDB and RDR which are assigned in the FR-A5NR
of the inverter located farthest from the GOT.
The terminating resister is packed together with the FR-A5NR.
• Set the terminating resistor of GOT side, which will be a terminal, to “Enable”.

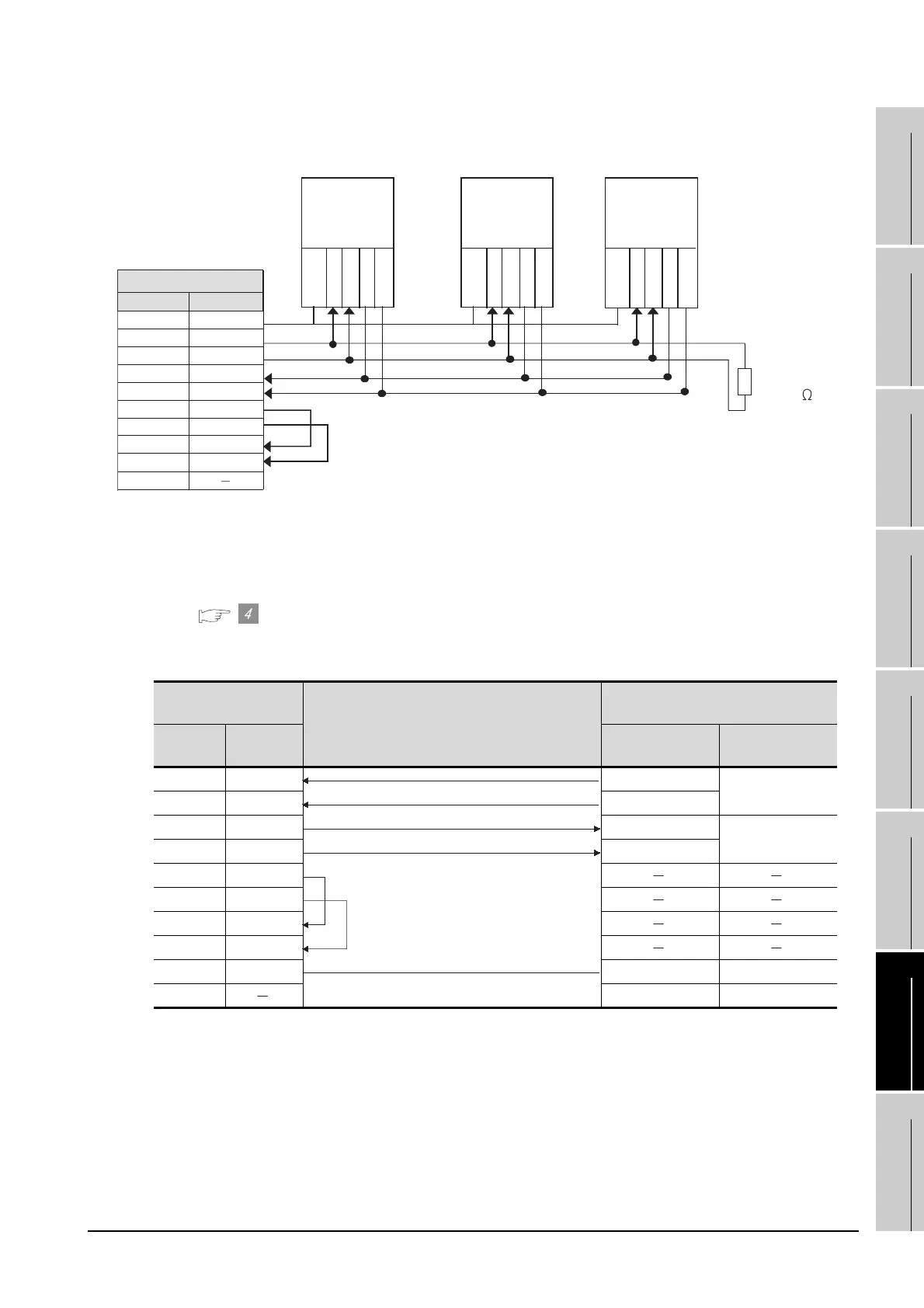

Connecting terminating resistors
(5) RS-422 cable 5)
• RDA2, RDB2, SDA2 and SDB2 terminals of the RS485 terminal block (built into the inverter)
cannot be used.
GOT side
Cable connection and signal direction
Inverter side
RS485 terminal block(built into the inverter)
Signal
name
Pin No. Terminal name
Terminal block
name
RDA 2 SDA1(TXD1+)
TXD
RDB 7 SDB1(TXD1-)
SDA 1 RDA1(RXD1+)
RXD
SDB 6 RDB1(RXD1-)
RSA 3
RSB 8
CSA 4
CSB 9
SG 5 SG(GND) VCC
FG
SG
5
SDB
6
SDA 1
RDB 7
RDA 2
RSA 3
RSB 8
CSA 4
CSB 9
FG
S
D
A
S
D
B
R
D
A
R
D
B
S
G
S
D
A
S
D
B
R
D
A
R
D
B
S
G
S
D
A
S
D
B
R
D
A
R
D
B
S
G
FR-A5NR side FR-A5NR side
FR-A5NR side
(Terminal block) (Terminal block)
(Terminal block)
GOT side
Signal name
Pin No.
Station No.0
Station No.1
Station No.n
Terminating
resistor
100
To Next Page
