Mitsubishi GOT2000 Series User Manual

6.6 Operation Log Information
6 - 71
6
DATA CONTROL
(3) Search operation

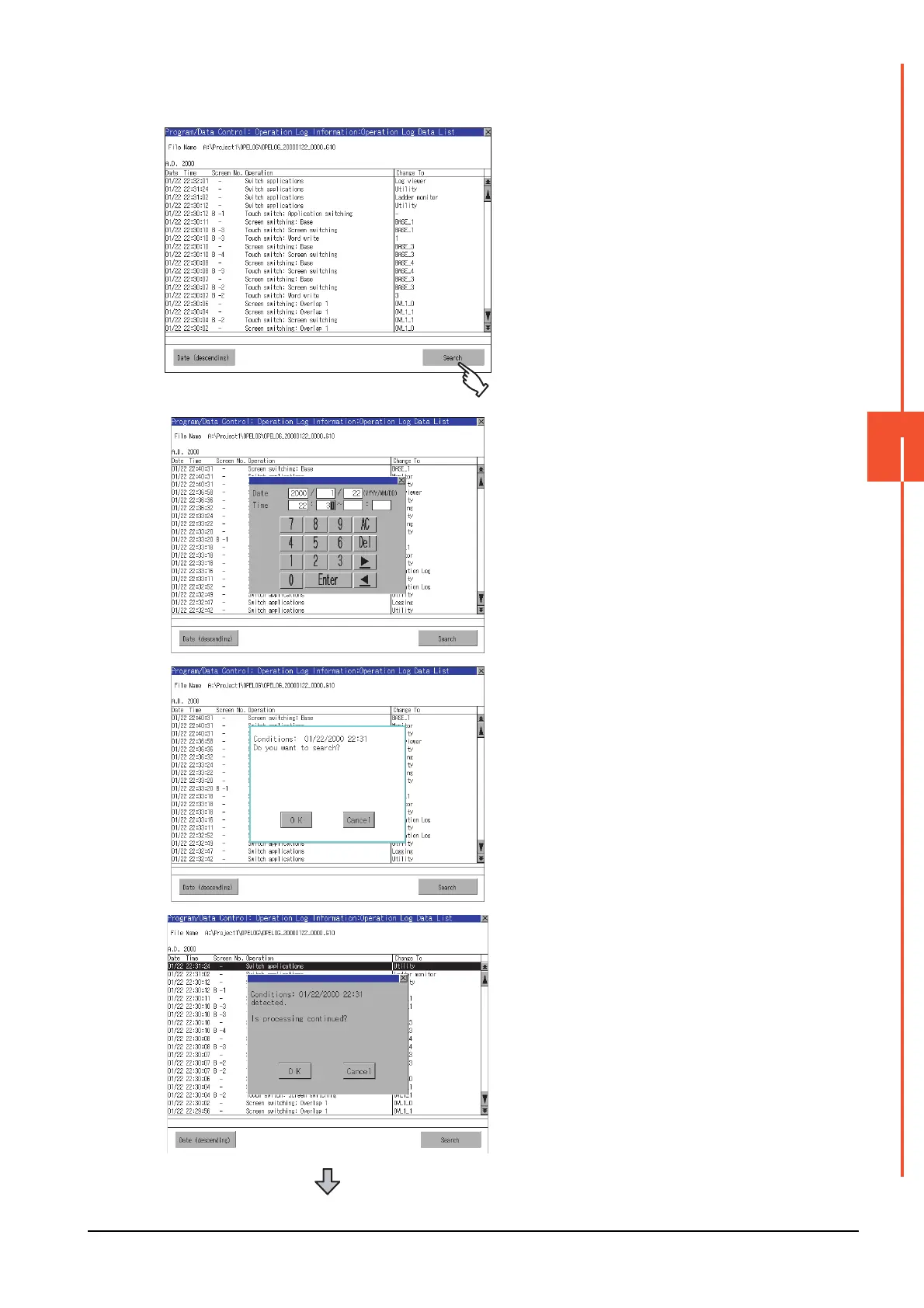

Step 1.
Touching [Search] in the list enables
searching of a log using the following
items.
Item: Date
Time
Step 2. Input the date or time to be
searched.
Step 3. Touch the [Enter] button, and then
the dialog box shown left is
displayed.
Touch the [OK] button.
(When processing is being executed,
the "Processing" message is
displayed on the screen.)
Step 4. The results found are displayed and
the dialog box on the left is
displayed.
To continue a search, touch the [OK]
button.
To stop a search, touch the [Cancel]
button.
(Continued to next page)

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
