• Setting example of the conversion table for scaling
*1 When coordinates are specified using three points as shown in the points 4, 5 and 6, the output value can be set to an intermediate
value.
In this example, the output value (intermediate value) is specified by the Y coordinate of the point 5.
Even if the X coordinate is the same at three points or more, the value at the second point is output.
*2 When coordinates are specified using two points as shown in the points 8 and 9, the output value is the Y coordinate at the next point.
In this example, the output value is specified by the Y coordinate of the point 9.

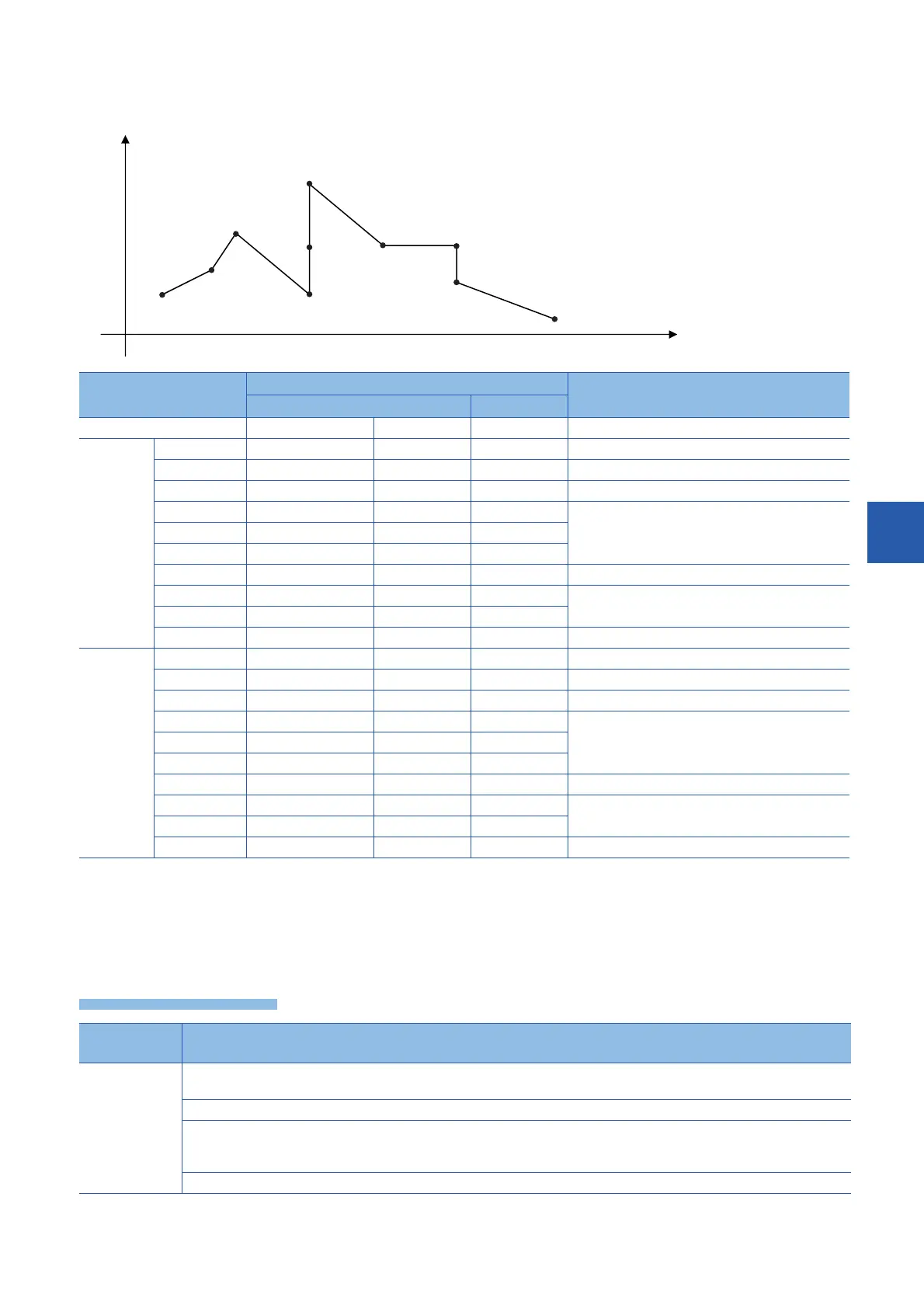

In the case of the conversion characteristics for scaling shown in the figure below, set each value as shown in the following data table.
Setting item Setting device and setting contents Remarks
When R0 is specified in (s2) Setting details
Number of coordinate points (s2)+1, (s2) R1, R0 K10
X coordinate Point 1 (s2)+3, (s2)+2 R3, R2 K5
Point 2 (s2)+5, (s2)+4 R5, R4 K20
Point 3 (s2)+7, (s2)+6 R7, R6 K50
Point 4 (s2)+9, (s2)+8 R9, R8 K200 Refer to
*1
.
Point 5 (s2)+11, (s2)+10 R11, R10 K200
Point 6 (s2)+13, (s2)+12 R13, R12 K200
Point 7 (s2)+15, (s2)+14 R15, R14 K250
Point 8 (s2)+17, (s2)+16 R17, R16 K350 Refer to
*2
.
Point 9 (s2)+19, (s2)+18 R19, R18 K350
Point 10 (s2)+21, (s2)+20 R21, R20 K400
Y coordinate Point 1 (s2)+23, (s2)+22 R23, R22 K7
Point 2 (s2)+25, (s2)+24 R25, R24 K30
Point 3 (s2)+27, (s2)+26 R27, R26 K100
Point 4 (s2)+29, (s2)+28 R29, R28 K25 Refer to
*1
.
Point 5 (s2)+31, (s2)+30 R31, R30 K70
Point 6 (s2)+33, (s2)+32 R33, R32 K250
Point 7 (s2)+35, (s2)+34 R35, R34 K90
Point 8 (s2)+37, (s2)+36 R37, R36 K90 Refer to
*2
.
Point 9 (s2)+39, (s2)+38 R39, R38 K30
Point 10 (s2)+41, (s2)+40 R41, R40 K7
Error code
(SD0/SD8067)
Description
3405 The Xn data is not set in the ascending order in the data table.
However, the instructions before the occurrence of an error are executed.
The input value specified by (s1) is out of the range for the set scaling conversion data.
The value in the middle of operation exceeds the 32-bit data range.
In this case, verify that the distance between points is not "65535" or more.
If the distance is "65535" or more, reduce the distance between points.
The number of coordinate points from the device specified by (s2) is 0 or less.
X
Y
Point 1 (5, 7)
Point 10 (400, 7)
Point 2
Point 3
(50, 100)
Point 4 (200, 25)
Point 5
(200, 70)
Point 6 (200, 250)
Point 7
(250, 90)
Point 8 (350, 90)
Point 9
(350, 30)
(20, 30)
