8. Remove the after-thermistor.
9. Remove the after-thermistor.
10. Replace the after-thermistor.
11. To reassemble the unit, reverse the removal procedure.

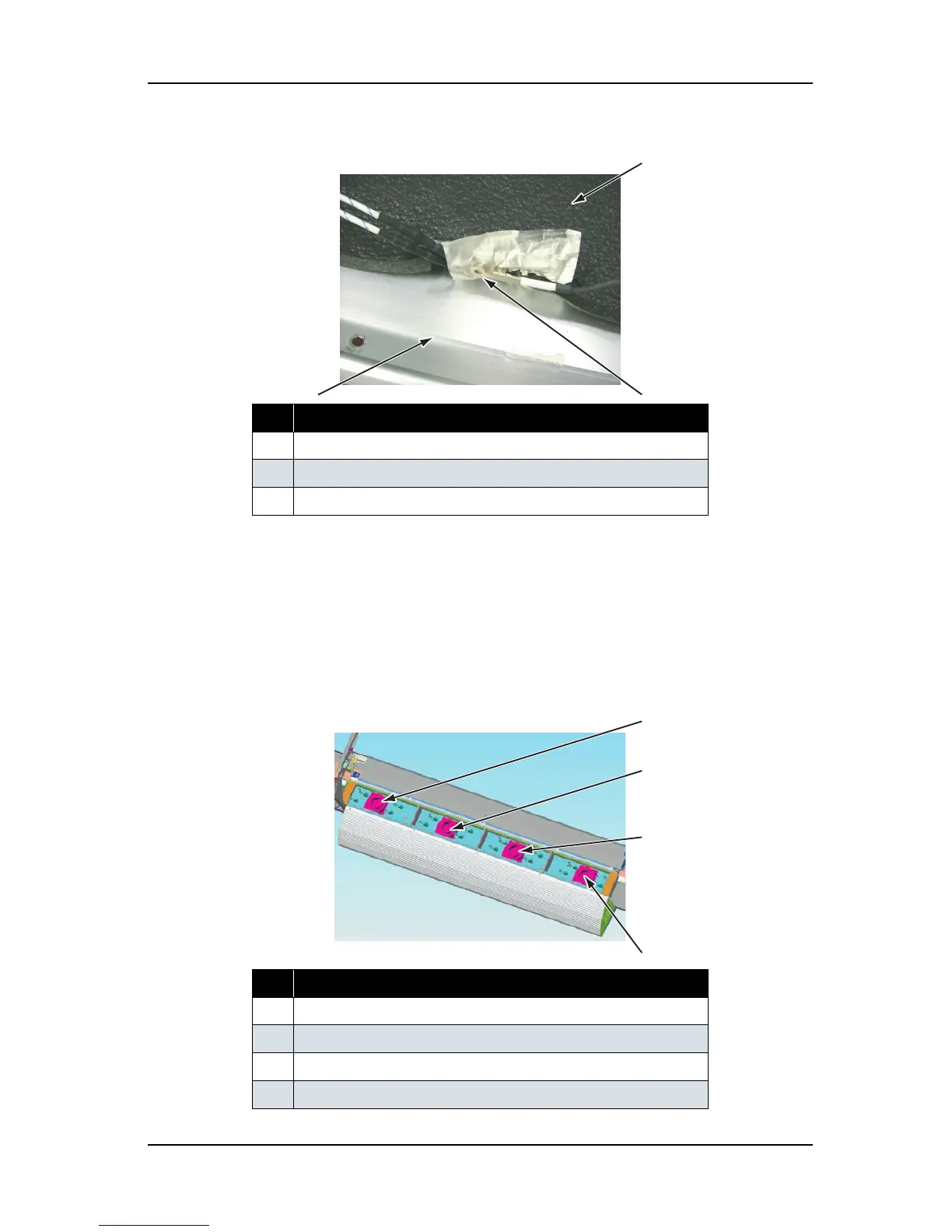

4.6.8 Replacing Suction Fan
The suction fan is arranged as follows.
No. Part name
1 Media guide F (upper)
2 After-heater thermistor
3 After-heater heat insulator
No. Part name
1 Suction fan 1
2 Suction fan 2
3 Suction fan 3
4 Suction fan 4
2
1
3
Rear view of media guide F
1
2
3
4
