4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-20

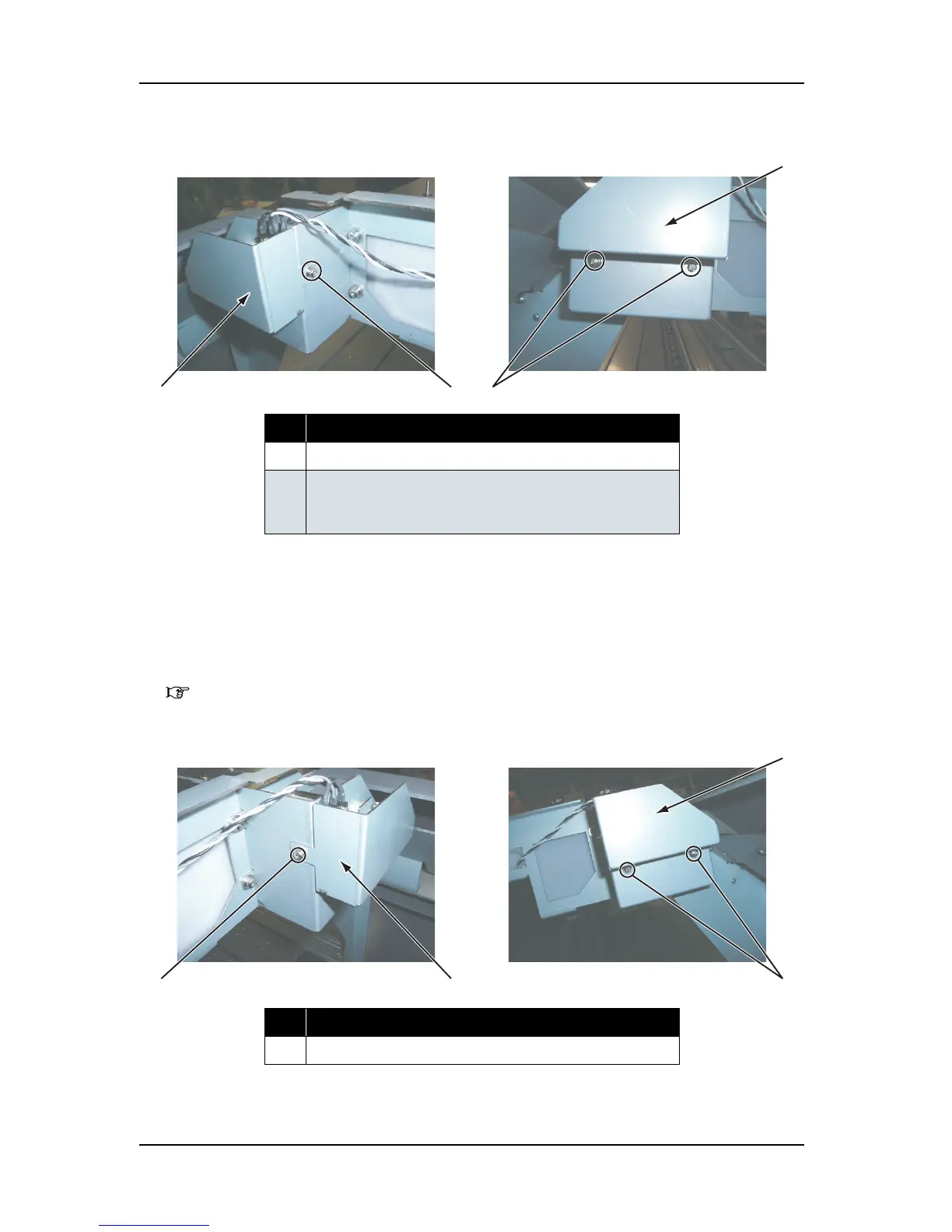

2. Remove the screws (3 pieces) that retain the switch cover R.
3. Remove the switch cover R.
4. To reassemble the unit, reverse the removal procedure.
4.2.13 Removing Switch Cover L
1. Remove the side top cover L.
"4.2.7 Removing Side Top Cover L" p.4-14
2. Remove the screws (3 pieces) that retain the switch cover L.
No. Part name
1 Switch cover R
2 Screws that retain the switch cover R
(pan-head screw with spring washer and flat washer M3
×
8)
No. Part name
1 Switch cover L
2
1
2
1
Rear view
Right view
2
1
1
2
Rear view
Left view
