VJ-1604 Maintenance Manual 2 Product Overview
2-5 Rev.-05

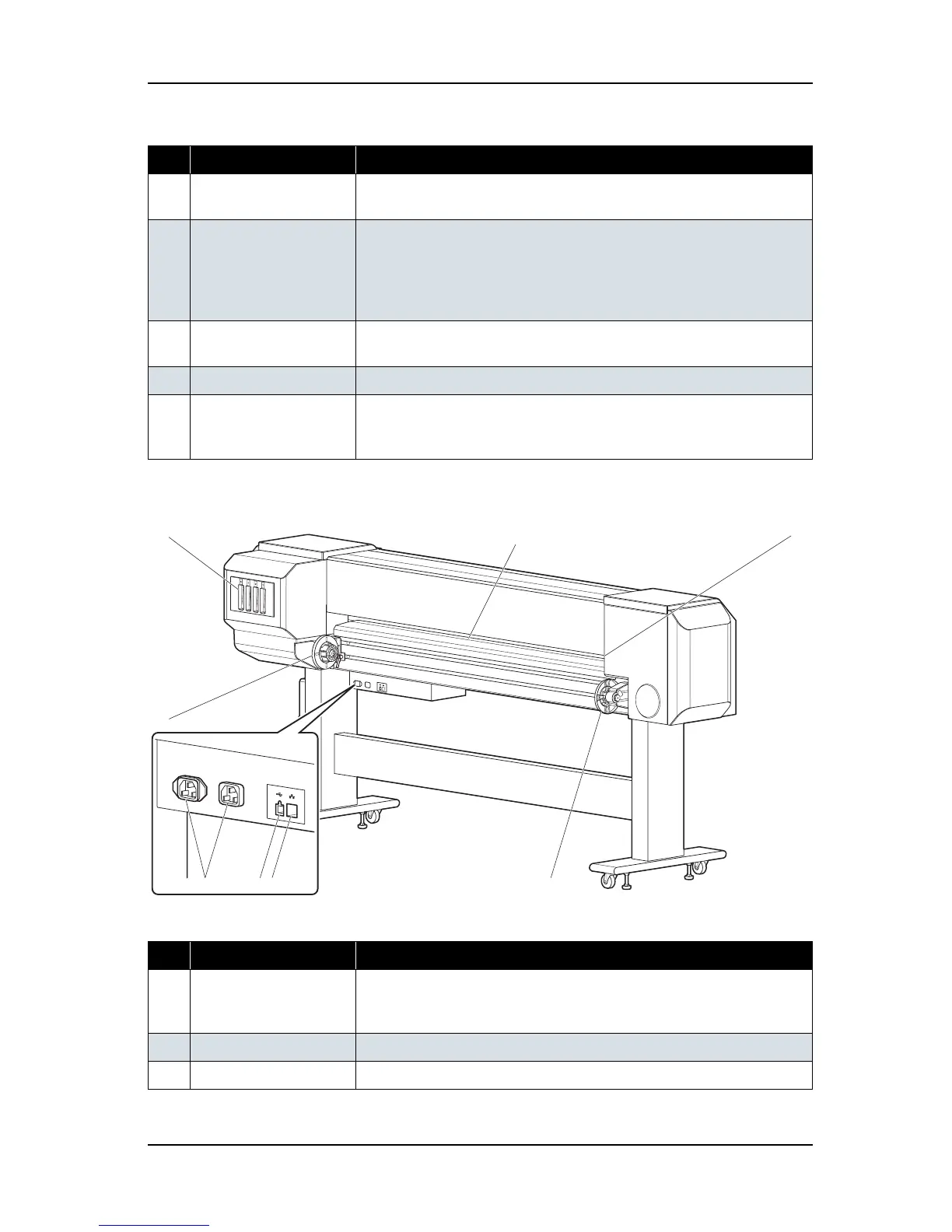

2.3.2 Rear Section
9 Media cut groove Installed inside of the front cover
Used to cut printed media straight
10 Maintenance cover Used to protect users from the mechanical parts inside the plotter in the
following cases:
- Cleaning the cleaning wiper
- Cleaning around the print head
This cover must usually be closed.
11 Waste fluid cock Opened/closed when discharging waste fluid from waste fluid tank. This
cover must usually be closed.
12 Adjuster Used to keep the plotter level
13 Media holding plate Installed inside the front cover
By attaching media holder plates to both sides of the media, it is possible
to prevent media warp.
Table 2-2 Part Names and Functions of Rear Section
No. Name Function
1 Roll media holders Used to load the roll media
Include flanges where roll media is attached, and the levers that fix the roll
media holders.
2 Media feed slot Insert media from here when feeding media
3 Ink cartridge slot Holds the ink cartridge
Table 2-1 Part Names and Functions of Front Section (Continued)
No. Name Function
24
1
5 6 7 1
3
To Next Page
