VJ-1604 Maintenance Manual 4 Parts Replacement
4-11 Rev.-05

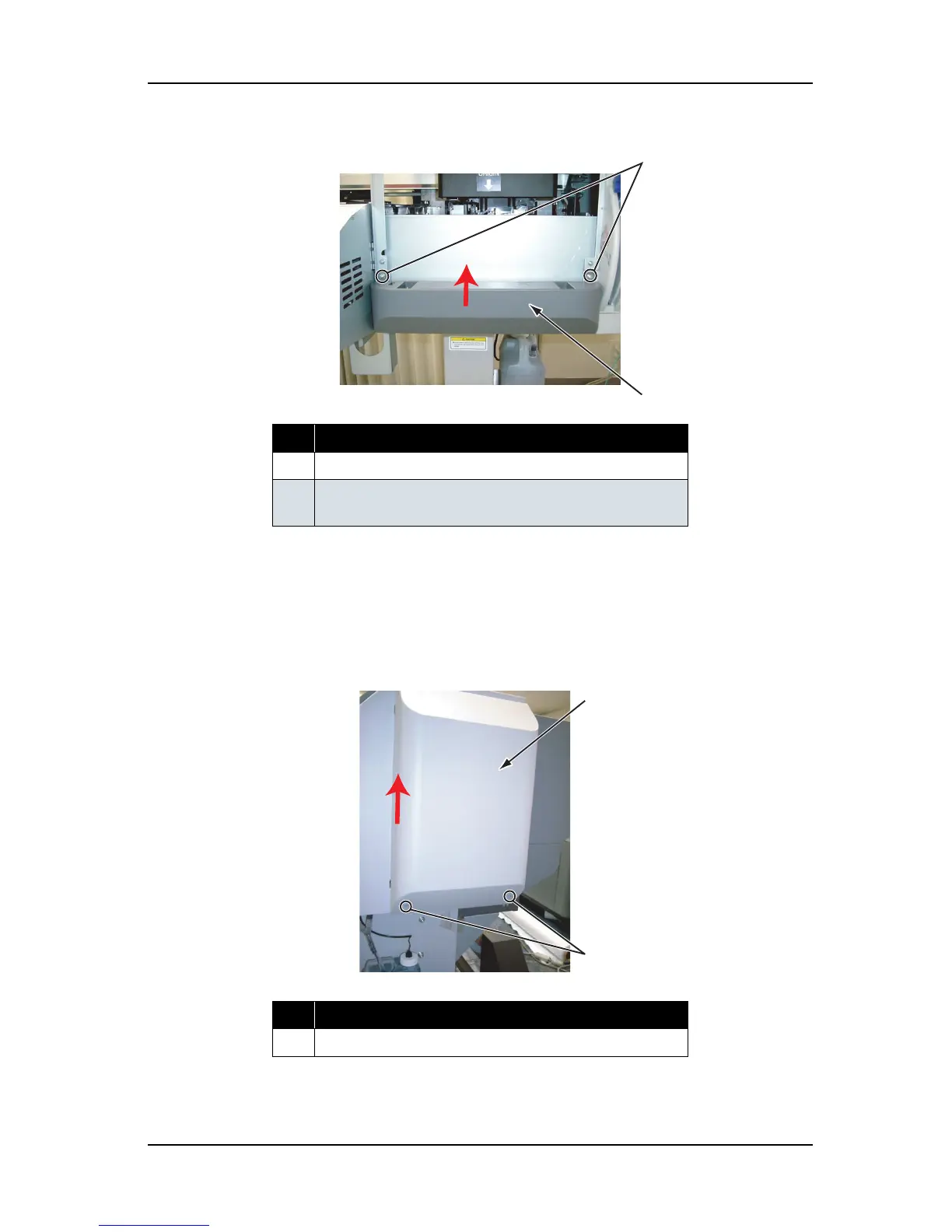

2. Remove the screws (2 pieces) that retain the maintenance cover U.
3. Remove the maintenance cover U.
4. To reassemble the unit, reverse the removal procedure.
4.2.4 Removing Side Maintenance Cover R
1. Remove the screws (2 pieces) that retain the side maintenance cover R.
No. Part name
1 Maintenance cover U
2 Screws that retain the maintenance cover U
(pan-head screw with spring washer and flat washer M4 × 8)
No. Part name
1 Side maintenance cover R
1
2
1
2
