MUTOH ValueJet 1604 - Replacing Cooling Fan (24 V) Assembly (in Media Guide F)

VJ-1604 Maintenance Manual 4 Parts Replacement
4-49 Rev.-05

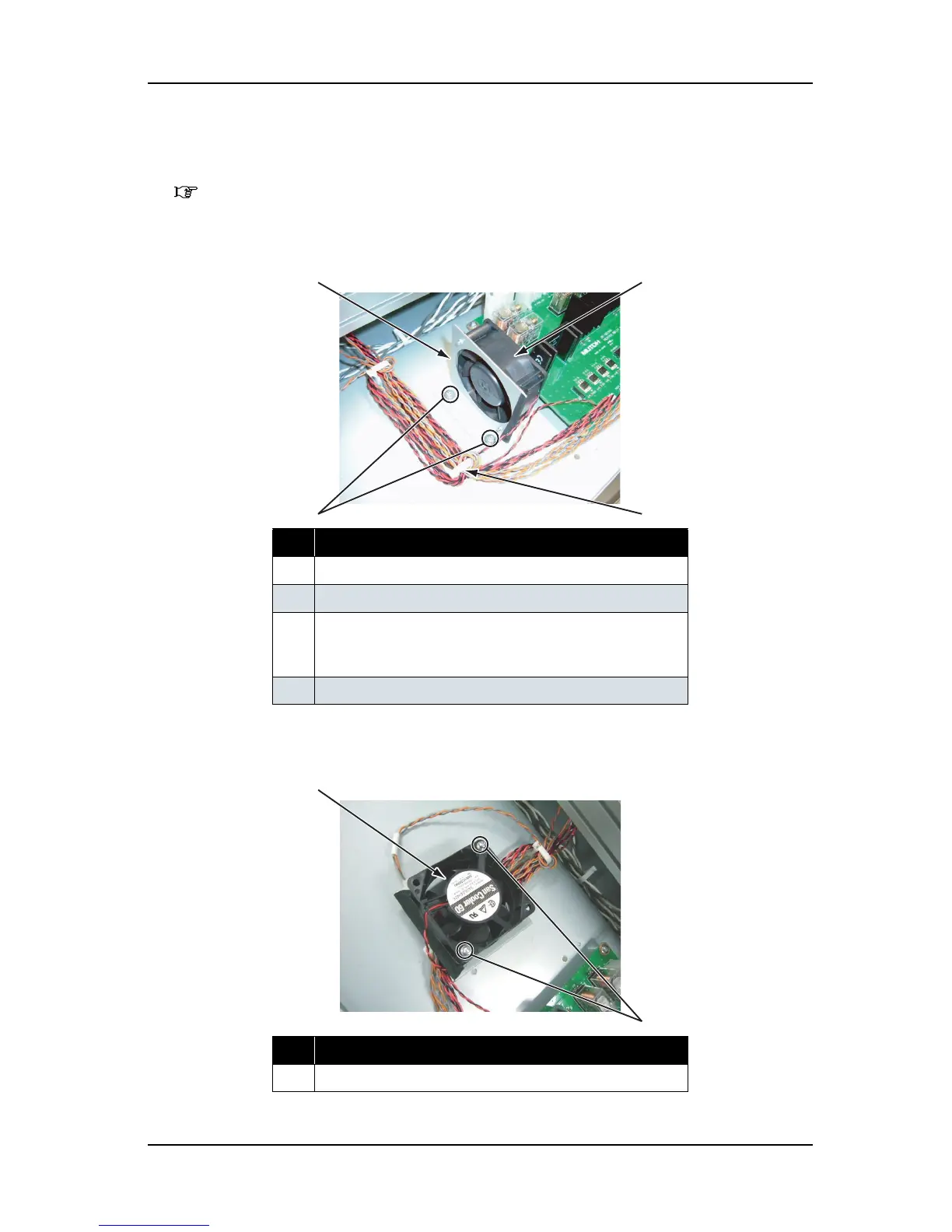

4.4.6 Replacing Cooling Fan (24V) Assembly (in Media Guide F)
1. Remove the media guide F (upper).
"4.2.17 Removing Media Guide F (Upper)" p.4-24
2. Remove the connector to the cooling fan (24V) assembly.
3. Remove the screws (2 pieces) that retain the cooling fan (24V) assembly.
4. Remove the cooling fan mounting plate.
5. Remove the screws (2 pieces) that retain the cooling fan (24V) assembly.
No. Part name
1 Cooling fan (24V) assembly
2 Cooling fan mounting plate
3 Screws that retain the cooling fan mounting plate
(pan-head screw with spring washer and flat washer M4 ×
6)
4 Connector to the cooling fan (24V) assembly
No. Part name
1 Cooling fan (24V) assembly
2
1
3
Inside view of media guide F
4
2
1
Inside view of media guide F
