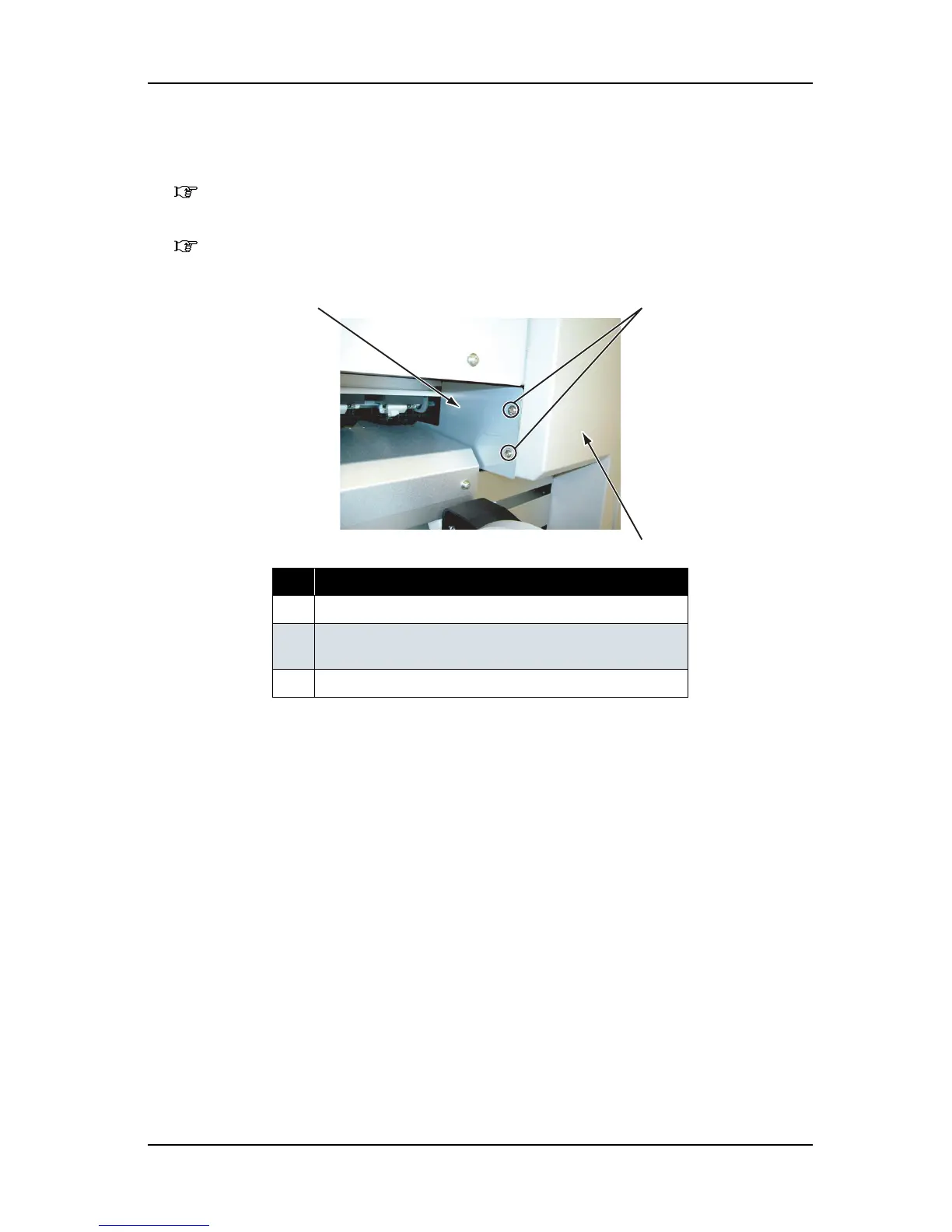

4.2.8 Removing Rear Side Cover
1. Remove the side maintenance cover L.
"4.2.5 Removing Side Maintenance Cover L" p.4-12
2. Remove the side top cover L.
"4.2.7 Removing Side Top Cover L" p.4-14
3. Remove the screws (2 pieces) that retain the rear side cover 3.
4. Remove the rear side cover 3.
No. Part name
1 Rear side cover 3
2 Screws that retain the rear side cover 3
(tapping screw M3
× 8)
3 Rear side cover
1
2
3
