MUTOH ValueJet 1604 - Replacing Pressure Roller

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-104
4.7.9 Replacing Pressure Roller

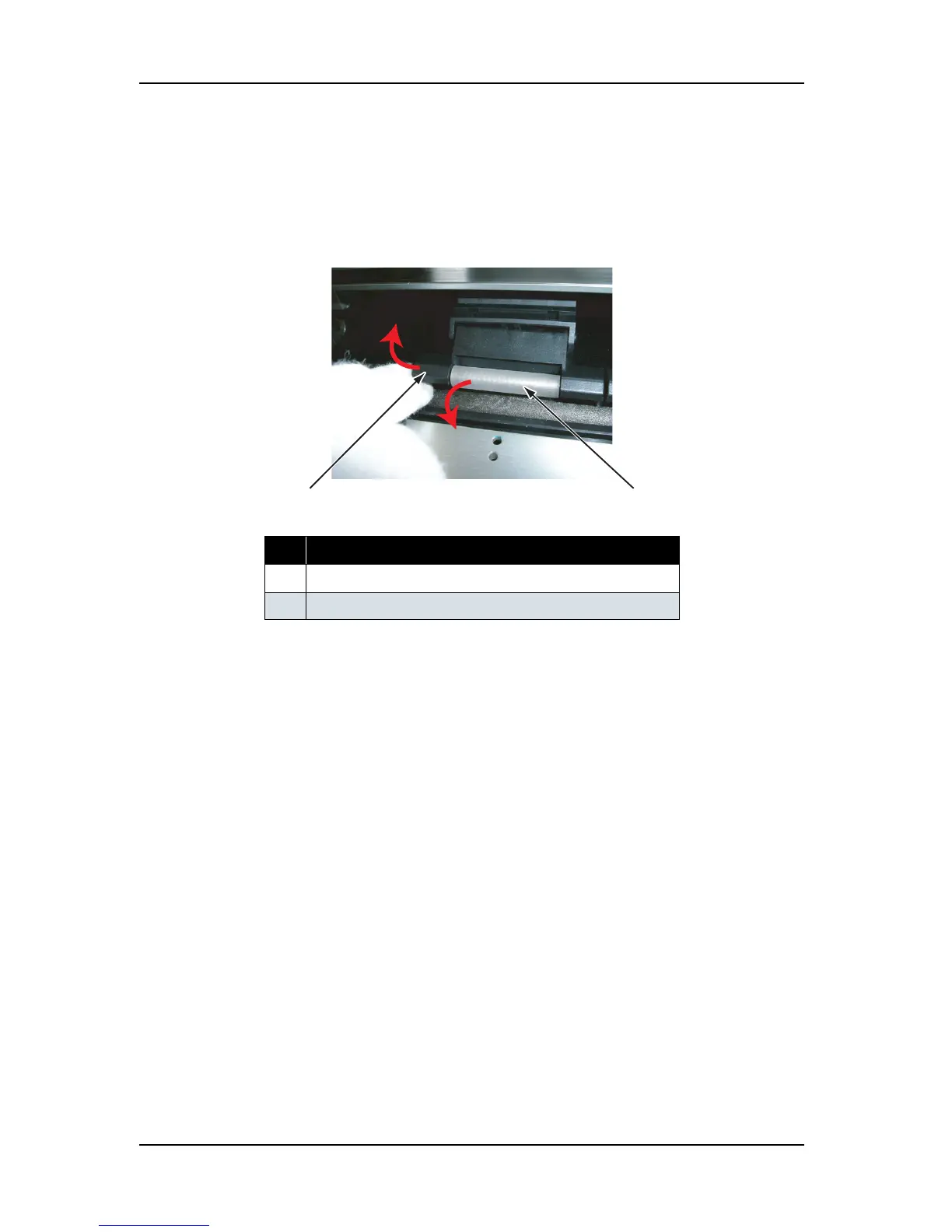

1. Open the front cover.
2. Lift up one end of the pressure arm slightly with a finger and hold it.
3. Pull down the other end of the pressure roller.
4. Confirm that one end of the pressure roller is detached.
5. Pull down the other end of the pressure roller.
6. Remove the pressure roller.
7. Replace the pressure roller.
8. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Pressure roller
2 Pressure arm
2
1
