VJ-1604 Maintenance Manual 4 Parts Replacement
4-103 Rev.-05

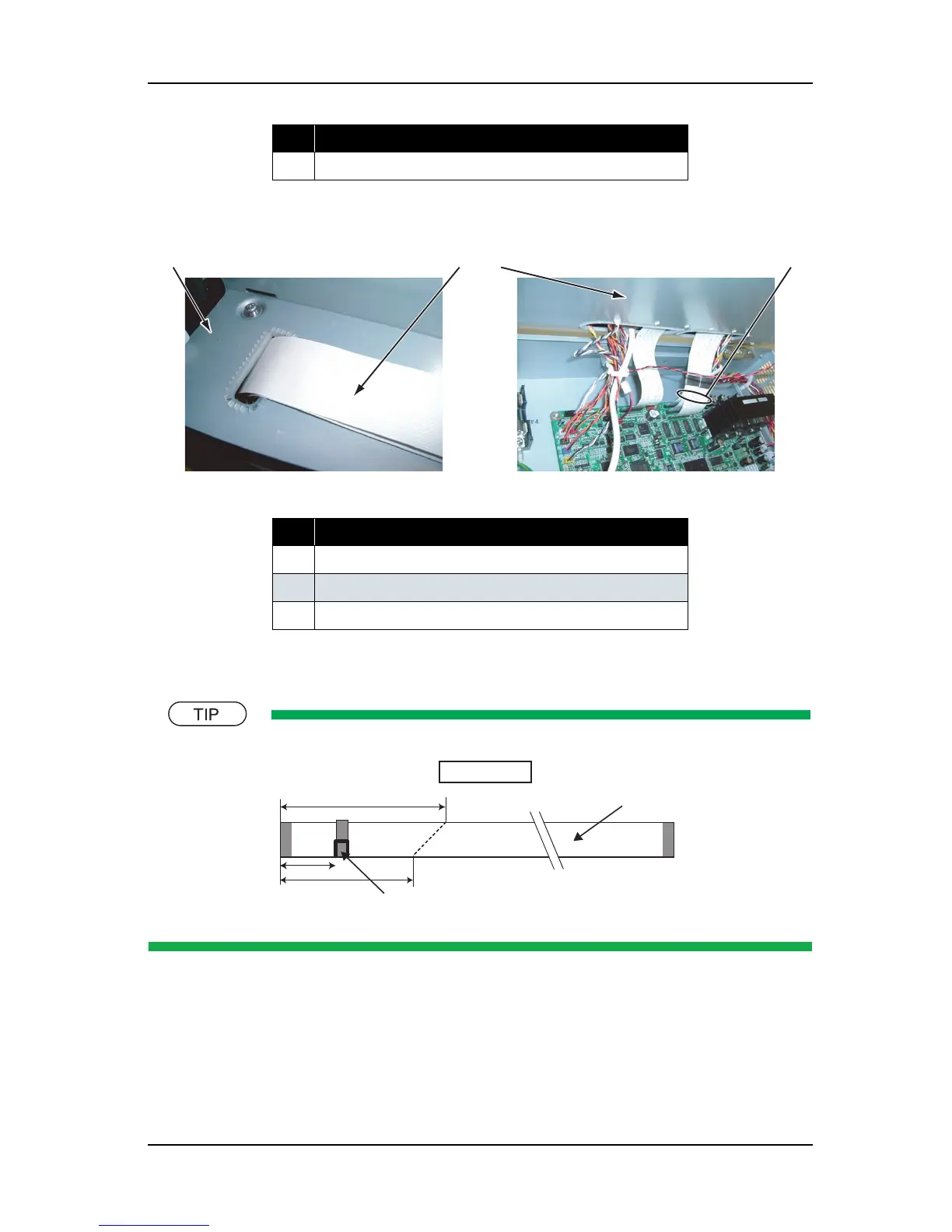

9. Pull out the CR_FFC from the hole on the origin side of the cable guide.
10. Pull out the CR_FFC from the hole on the leg holder base (64).
the
11. Replace the CR_FFC.
Fold the CR_FFC as follows.
12. Connect the CR_FFC (3 pieces) to the CR board assembly (J201 - J203).
13. Draw the CR_FFC through the same path as above.
14. Connect the CR_FFC to the MAIN board assembly (J9 - J11).
15. To reassemble the unit, reverse the removal procedure.
3FT guide material
No. Part name
1 CR_FFC
2 Cable guide
3 Leg holder base (64)
No. Part name
1
1
2
3
Cable guide
Back of leg holder base 64
335 mm
330 mm
60 mm
Fix the ferritic core with cable holder
CR board side
MAIN board
side
Face the printed
side front side
A
A: valley fold
To Next Page
