MUTOH ValueJet 1604 - Replacing Ink Tube

VJ-1604 Maintenance Manual 4 Parts Replacement
4-105 Rev.-05
4.7.10 Replacing Ink Tube
1. Perform ink discharge operation to discharge ink entirely from the ink paths.
"5.7.8 HeadWash Menu" p.5-43
2. Remove the rear top cover.
"4.2.15 Removing Rear Top Cover" p.4-21
3. Remove the cartridge cable cover plate.
"4.10.1 Replacing Ink ID Board Assembly" p.4-133

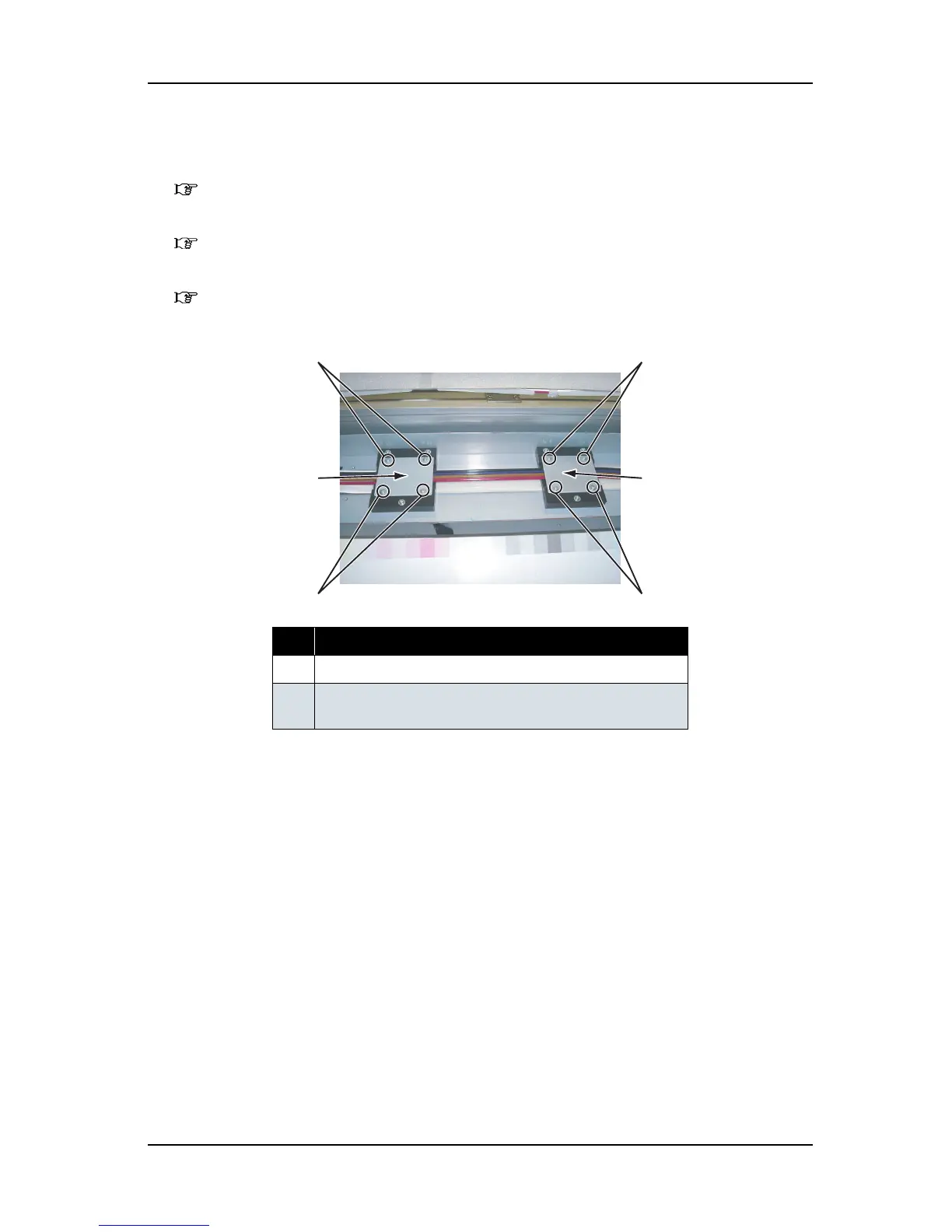

4. Remove the screws (4 pieces each) that retain the tube guide plate.
5. Remove the tube guide plates (2 pieces).
6. Remove the FFC guides (6 pieces).
No. Part name
1 Cable guide plate
2 Screws that retain the cable guide plate
(P tight cup screws M3
× 8)
2
2
1
1
2
2
