4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-154

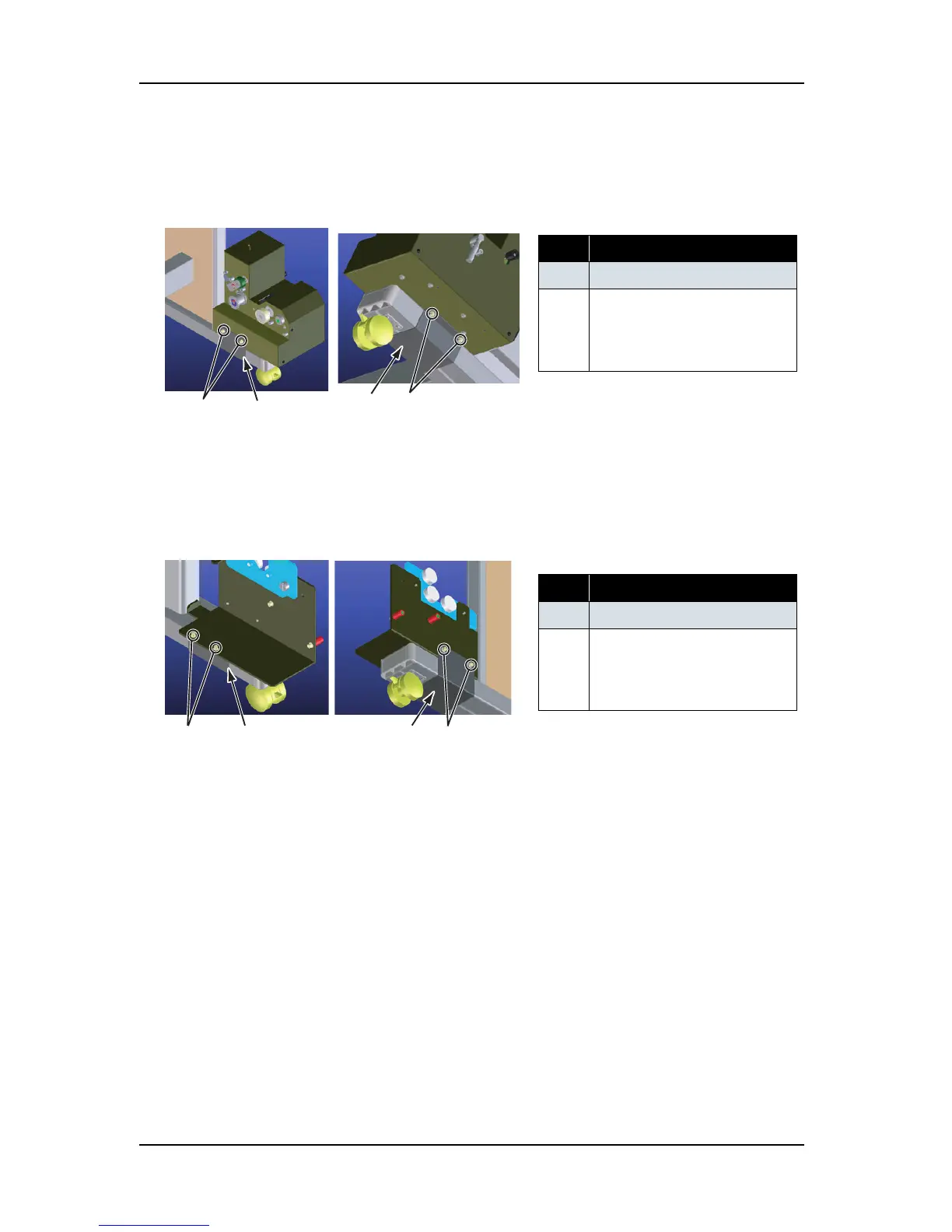

4.13.2 Removing Take-up Holding Plate
1. Remove the screws (hexagon socket head cap screw with spring washer and flat washer M4 × 8: 4 pieces)
that retain the take-up holding plate on the origin side.
2. Remove the screws (hexagon socket head cap screw with spring washer and flat washer M4
× 8: 4 pieces)
that retain the take-up holding plate opposite the origin side.
3. Remove the take-up holding plate.
4. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Take-up holding plate
2 Screws that retain the take-up
holding plate (hexagon socket
head cap screw with spring
washer and flat washer M4
× 8)
No. Part name
1 Take-up holding plate
2 Screws that retain the take-up
holding plate (hexagon socket
head cap screw with spring
washer and flat washer M4
× 8)
1
2
1
2
1
2
1
2
