MUTOH ValueJet 1604 - Winding Unit Section (Optional)

2 Product Overview VJ-1604 Maintenance Manual
Rev.-05 2-6

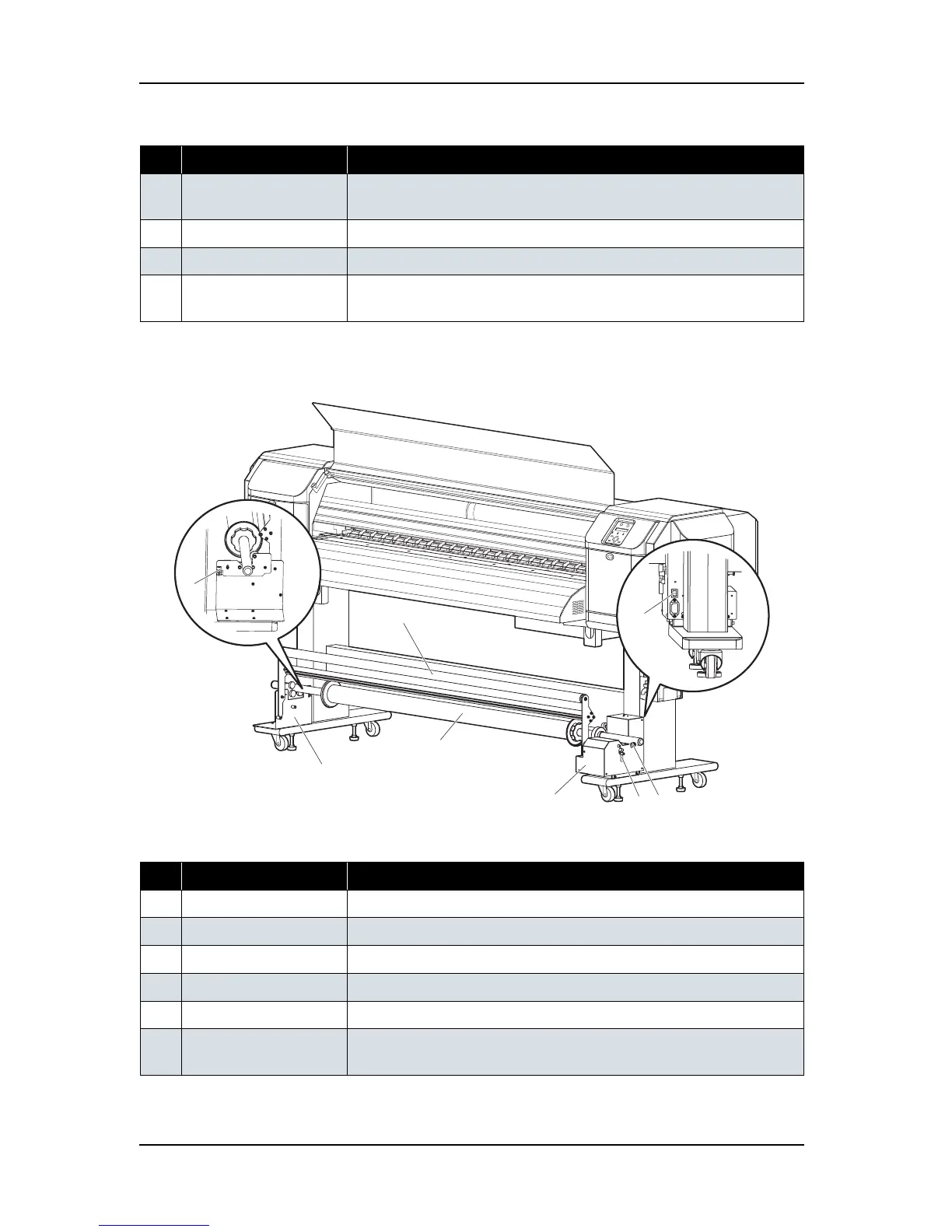

2.3.3 Winding Unit Section (Optional)
4 Media guide Used for feeding media smoothly when the media is set or printed.
The heater (pre-heater) to warm media is installed.
5 AC inlet Used for connecting the power cable
6 USB connector Not used for this printer
7 Network interface
connector
Connector to connect a network interface cable
Table 2-3 Part Names and Functions of Winding Unit Section
No. Name Function
1 Winding unit Used to take up printed media
2 Absorbing roller Used to guide printed media to the scroller
3 Scroller receiver Set the scroller for the winding unit here
4 Scroller release lever Used to poise the scroller when rotating the scroller manually
5 Scroller Used to take up printed media
6 Scroller height
adjustment screw
Adjusts the height of scroller receiver
Table 2-2 Part Names and Functions of Rear Section (Continued)
No. Name Function
1
2
3
4
8
5
7
6
