VJ-1604　 Maintenance Manual 5 Self-Diagnosis Mode
5-27 Rev.-05

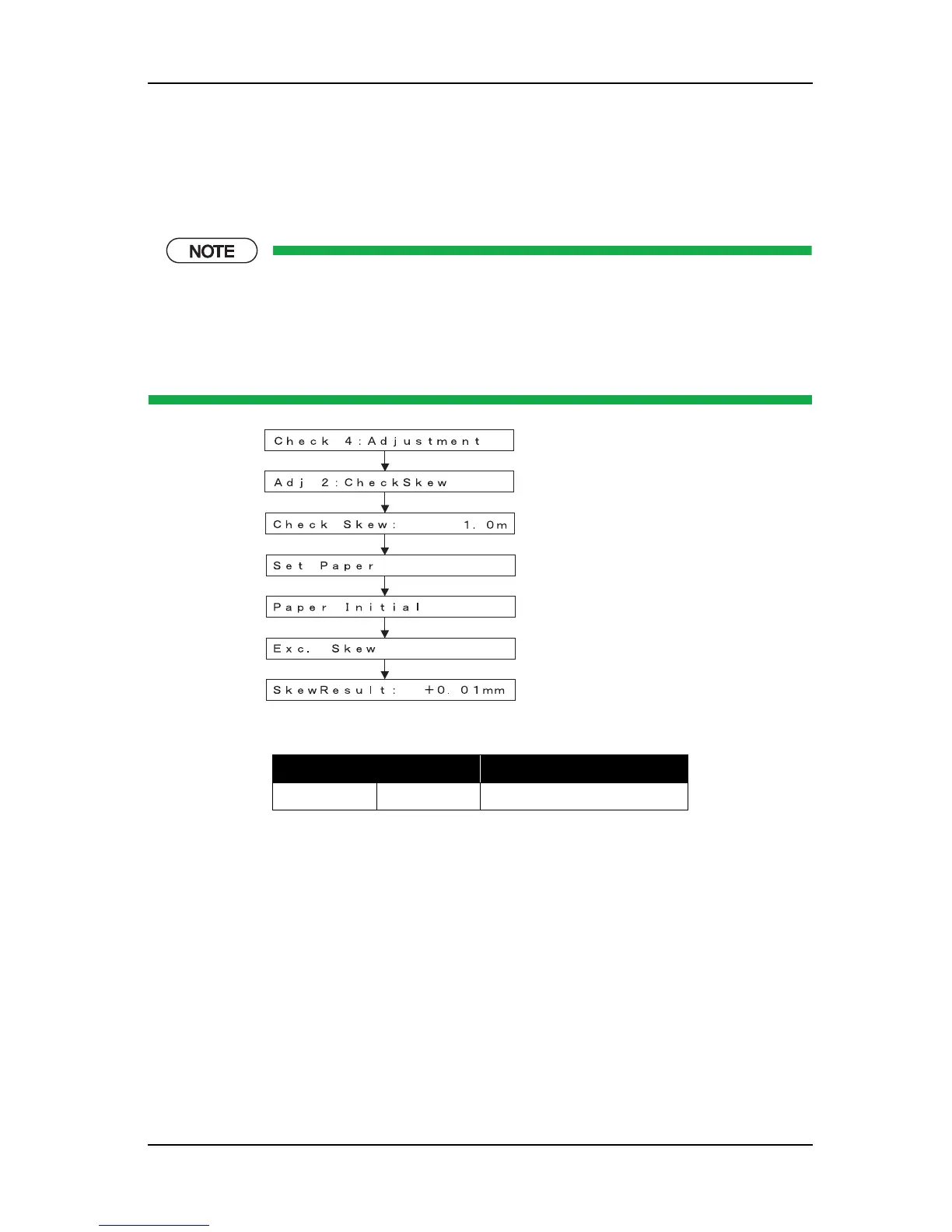

5.7.2 Skew Check Menu
Feed the paper to check the skew size using sensor.
When you select this item from the Adjustment Menu, the plotter feeds the loaded media by one pass and
checks difference of the media edge positions before and after the media feed detected by the sensor.
Before performing skew check, ensure that the media is set correctly.
The plotter determines the media setting reference position during first detection of media left edge.
Therefore, the media that is not set correctly may cause errors as below.
• Media error occurs during skew check and plotter operation stops.
• During media initial operation after power is turned on, "Undefined Paper" frequently occurs.
Table 5-6 Skew Amount Specification
Condition Specification
Roll media 7 m 2.5 mm or less
[Enter]
Media set
Finish media initialization
Media edge detection finishes normaly
0.1 m increments
0.1 m to 10.0 m
If media is not set
[Enter]
[Enter]
To Next Page
