MUTOH ValueJet 1604 - Replacing Leg Section; Replacing Waste Fluid Bottle

VJ-1604 Maintenance Manual 4 Parts Replacement
4-149 Rev.-05
4.11 Replacing Leg Section
This section describes the procedure to replace the leg section.
4.11.1 Replacing Waste Fluid Bottle
• Discharge waste fluid fully to replace the waste fluid bottle.
• Confirm that there remains no waste fluid in the waste fluid tube.
1. Remove the side maintenance cover R.
"4.2.4 Removing Side Maintenance Cover R" p.4-11
2. Remove the connector to the level switch (waste fluid).
3. Remove the waste fluid tube.
4. Loosen the cap of the waste fluid bottle.

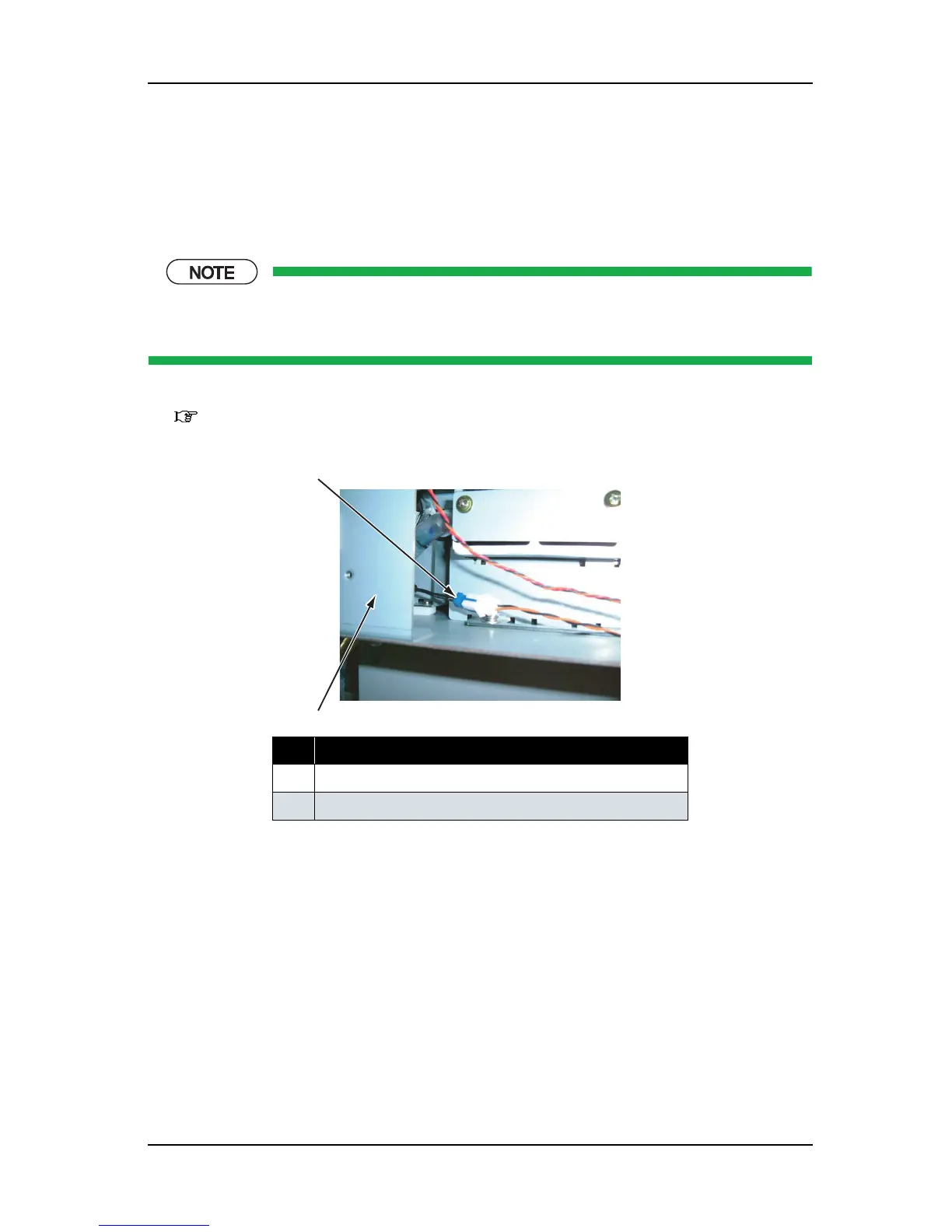

No. Part name
1 Connector to the level switch (waste fluid)
2 Cover stay RR
1
2
