4 Parts Replacement VJ-1604　 Maintenance Manual
Rev.-05 4-148
6. Remove the screws (2 pieces) that retain the sub tank assembly of the target color to the sub tank pack
base.
7. Pull out the sub tank assembly.
8. Replace the sub tank assembly.
9. To reassemble the unit, reverse the removal procedure.
10. Charge ink.
"5.6 Ink Charging Menu" p.5-22

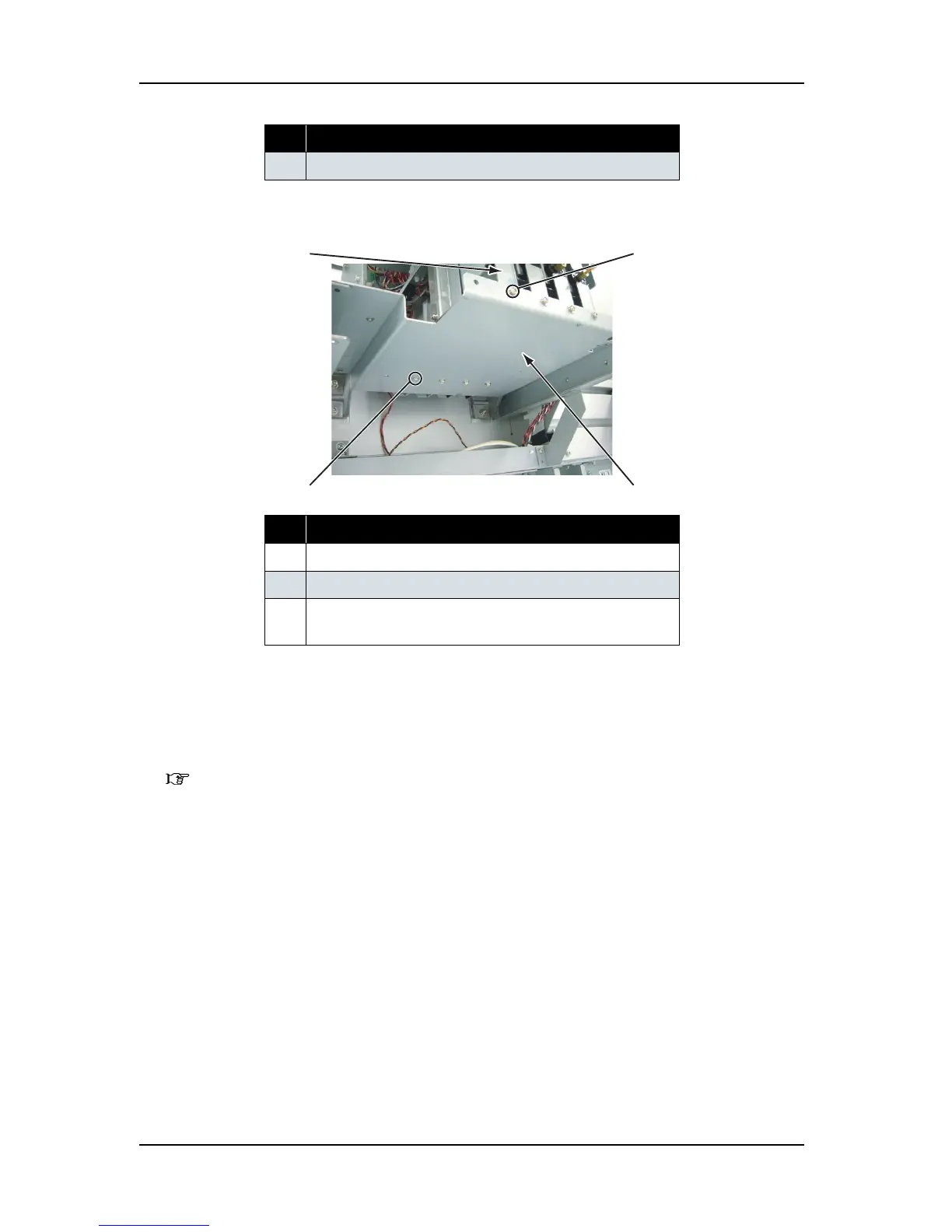

4 Two-way valve
No. Part name
1 Sub tank assembly
2 Sub tank pack base
3 Screws that retain the sub tank assembly
(pan-head screw with spring washer and flat washer M3x6)
No. Part name
1
3
3
2
