MUTOH ValueJet 1604 - Replacing Sub-Tank Lower Absorber Assembly

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-146

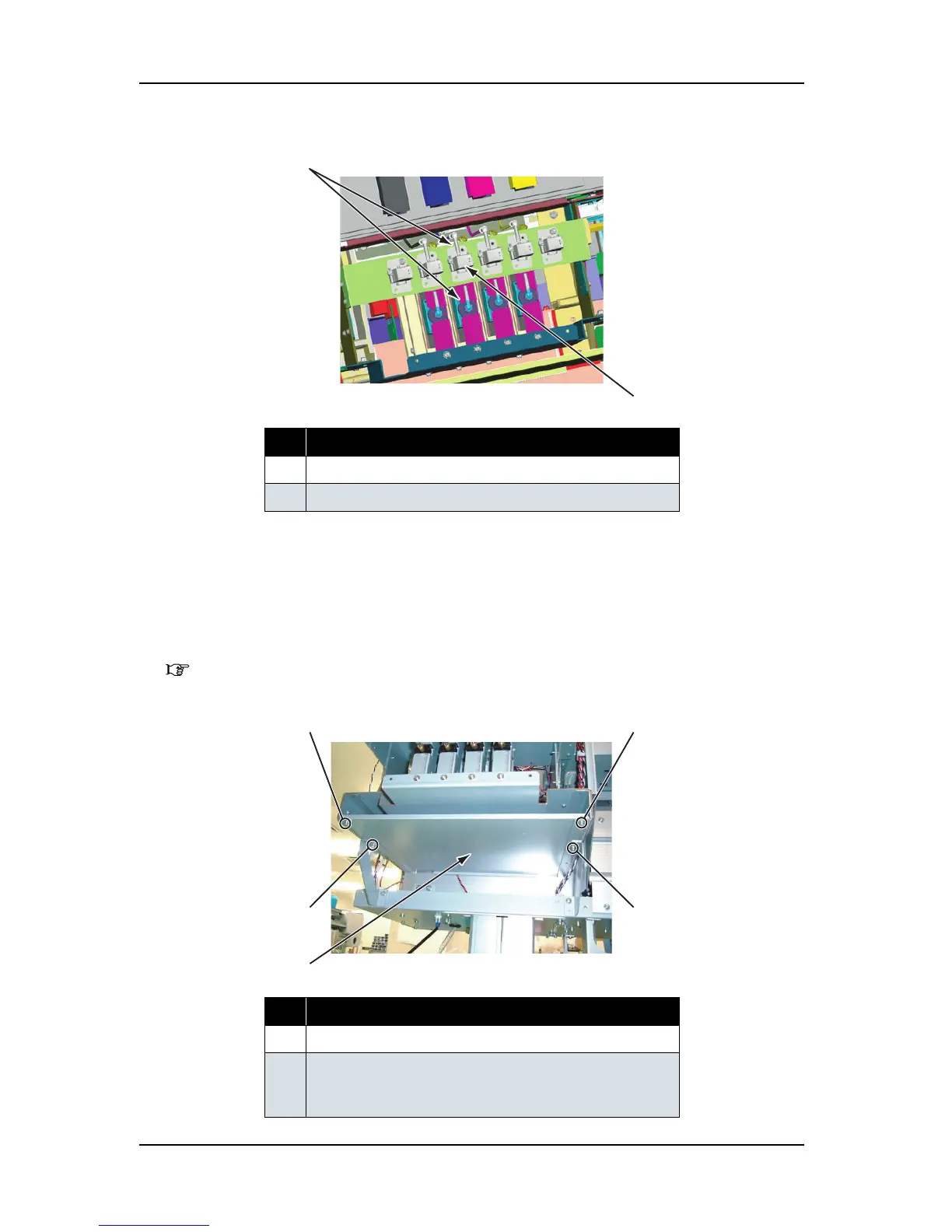

5. Remove the SMC two-way valve.
S
6. Replace the SMC two-way valve.
7. To reassemble the unit, reverse the removal procedure.
4.10.7 Replacing Sub-Tank Lower Absorber Assembly
1. Remove the cartridge cover (lower).
"4.2.11 Removing Cartridge Cover (Lower)" p.4-19
2. Remove the screws (4 pieces) that retain the absorber mounting plate.
No. Part name
1 SMC two-way valve
2 Ink tube
No. Part name
1 Absorber mounting plate
2 Screws that retain the absorber mounting plate
(pan-head screw with spring washer and flat washer M4
×
8)
2
1
K
K
C
M
Y
K
C
M
Y
K
C
M
Y
K
C
M
Y
