4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-18

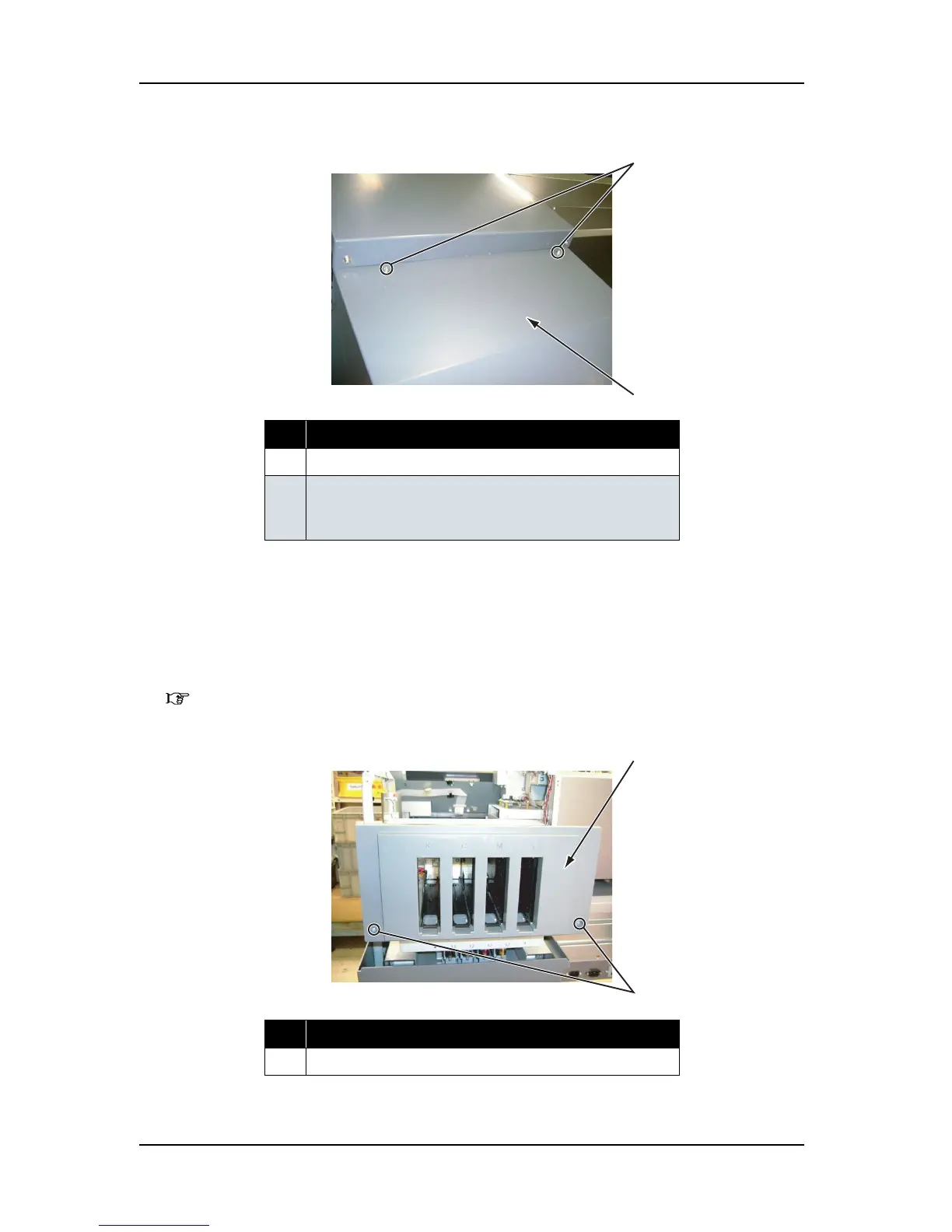

3. Remove the screws (2 pieces) on the upper part of the cartridge cover (upper).
4. Remove the cartridge cover (upper).
5. To reassemble the unit, reverse the removal procedure.
4.2.10 Removing Cartridge Cover (Middle)
1. Remove the cartridge cover (upper).
"4.2.9 Removing Cartridge Cover (Upper)" p.4-17
2. Remove the screws (2 pieces) that retain the cartridge cover (middle).
No. Part name
1 Cartridge cover (upper)
2 Screws that retain the cartridge cover (upper)
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1 Cartridge cover (middle)
1
2
2
1
