MUTOH ValueJet 1604 - Removing; Removing Rear Top Cover

VJ-1604 Maintenance Manual 4 Parts Replacement
4-21 Rev.-05
3. Remove the switch cover L.
4. To reassemble the unit, reverse the removal procedure.
4.2.14 Removing Front Cover
Front cover removal must be done by two or more persons.
1. Remove the screws that retain the left and right side of the front cover (4 pieces respectively).
2. Remove the front cover.
3. To reassemble the unit, reverse the removal procedure.
4.2.15 Removing Rear Top Cover
Rear top cover removal must be done by 2 or more persons.
1. Remove the side top cover R.
"4.2.6 Removing Side Top Cover R" p.4-12
2 Screws that retain the switch cover L
(pan-head screw with spring washer and flat washer M3
×
8)
No. Part name
1 Front cover
2 Screws that retain the front cover
(Trusco screw M4
× 6)
No. Part name
1
2
2
1

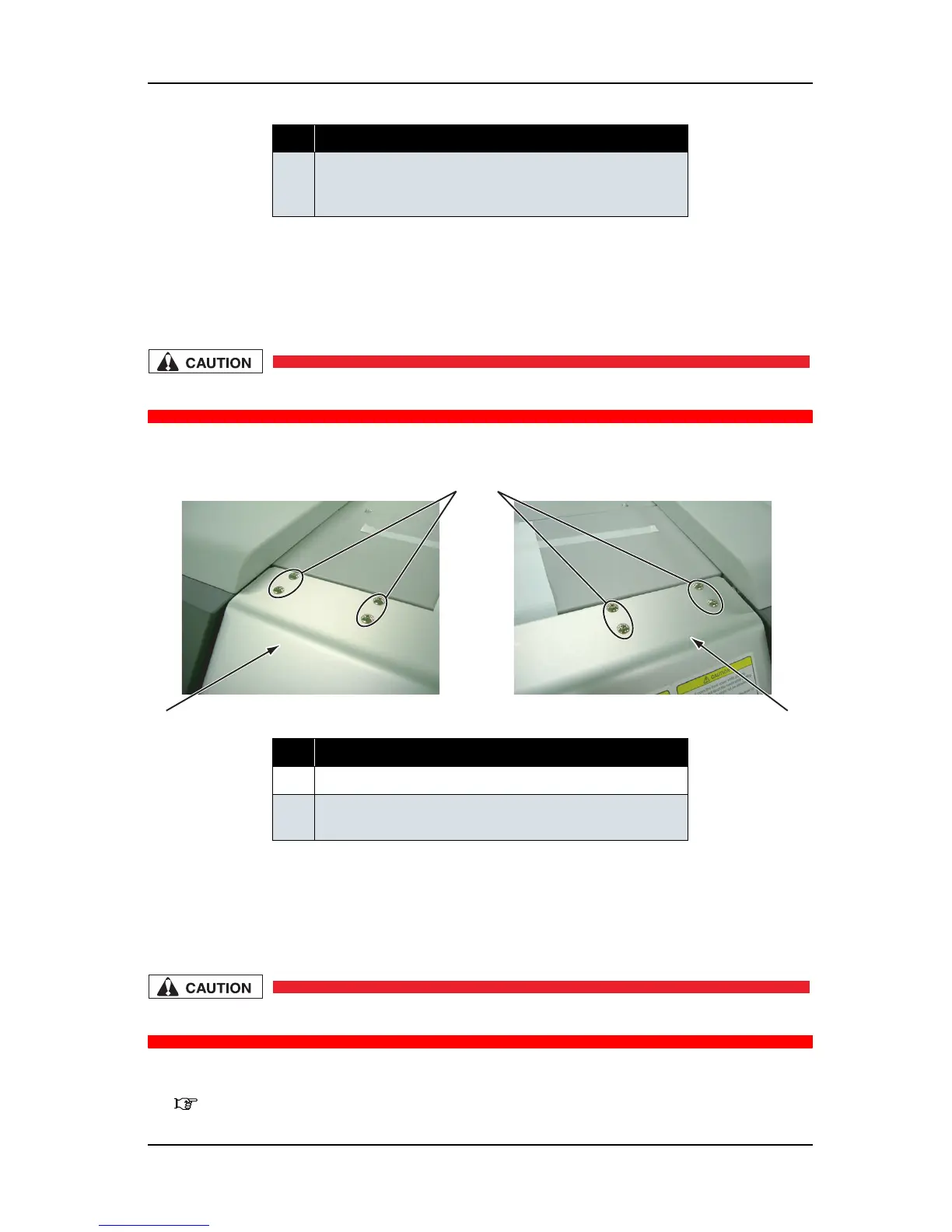

Left view
Right view
