4 Parts Replacement VJ-1604　 Maintenance Manual
Rev.-05 4-56

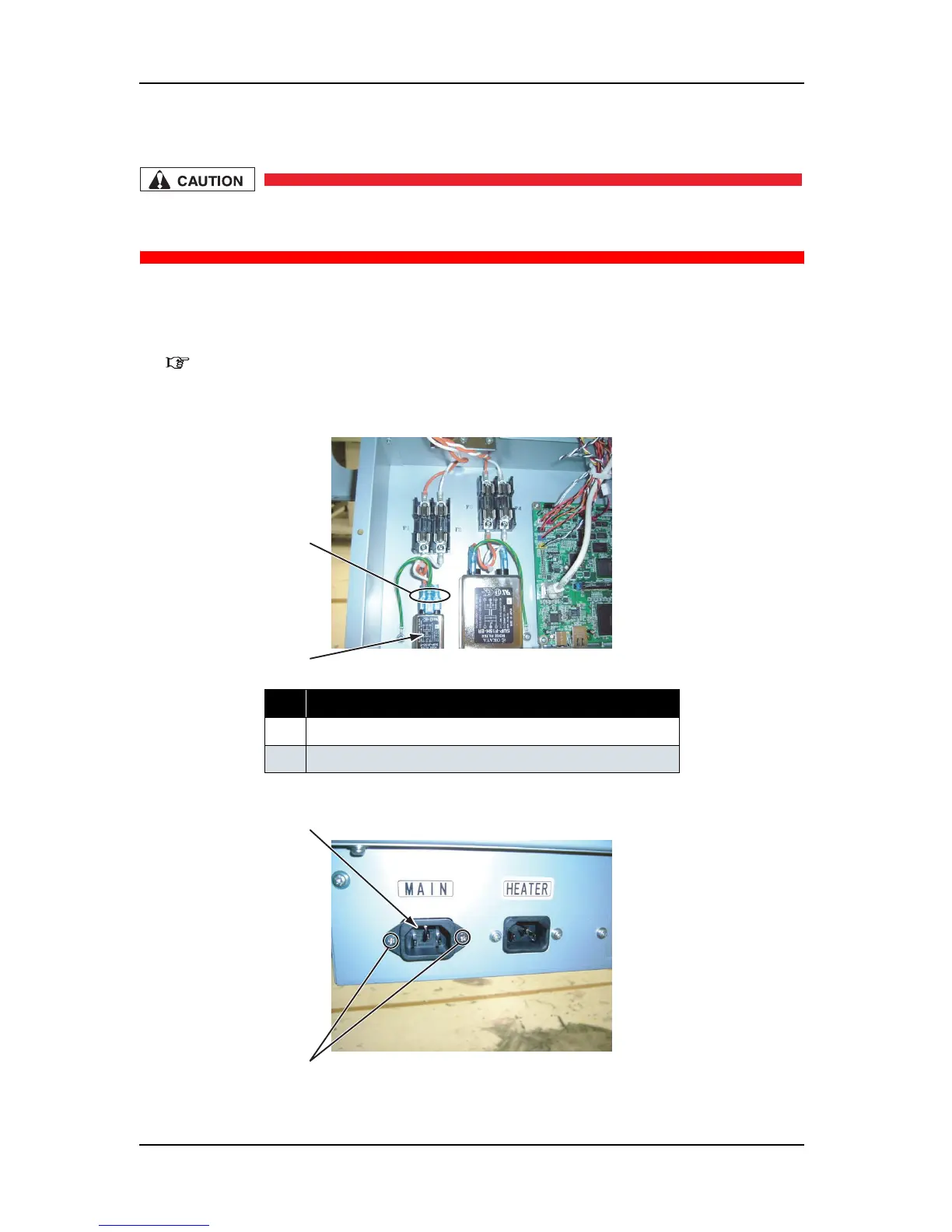

4.4.9 Replacing Inlet Assembly
• Remove the AC inlet cable to replace the fuse before replacing the AC inlet.
You may suffer electric shock due to standby current.
(1) Replacing AC Inlet Small (Main Side)
1. Open the board box 64.
"4.4.1 Opening Board Box 64" p.4-40
2. Remove the connectors (3 pieces).
3. Remove the screws (2 pieces) that retain the AC inlet small.
No. Part name
1 AC inlet small
2 Connector
1
2
2
1
