MUTOH ValueJet 1604 - Removing Media Guide R (Lower)

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-30

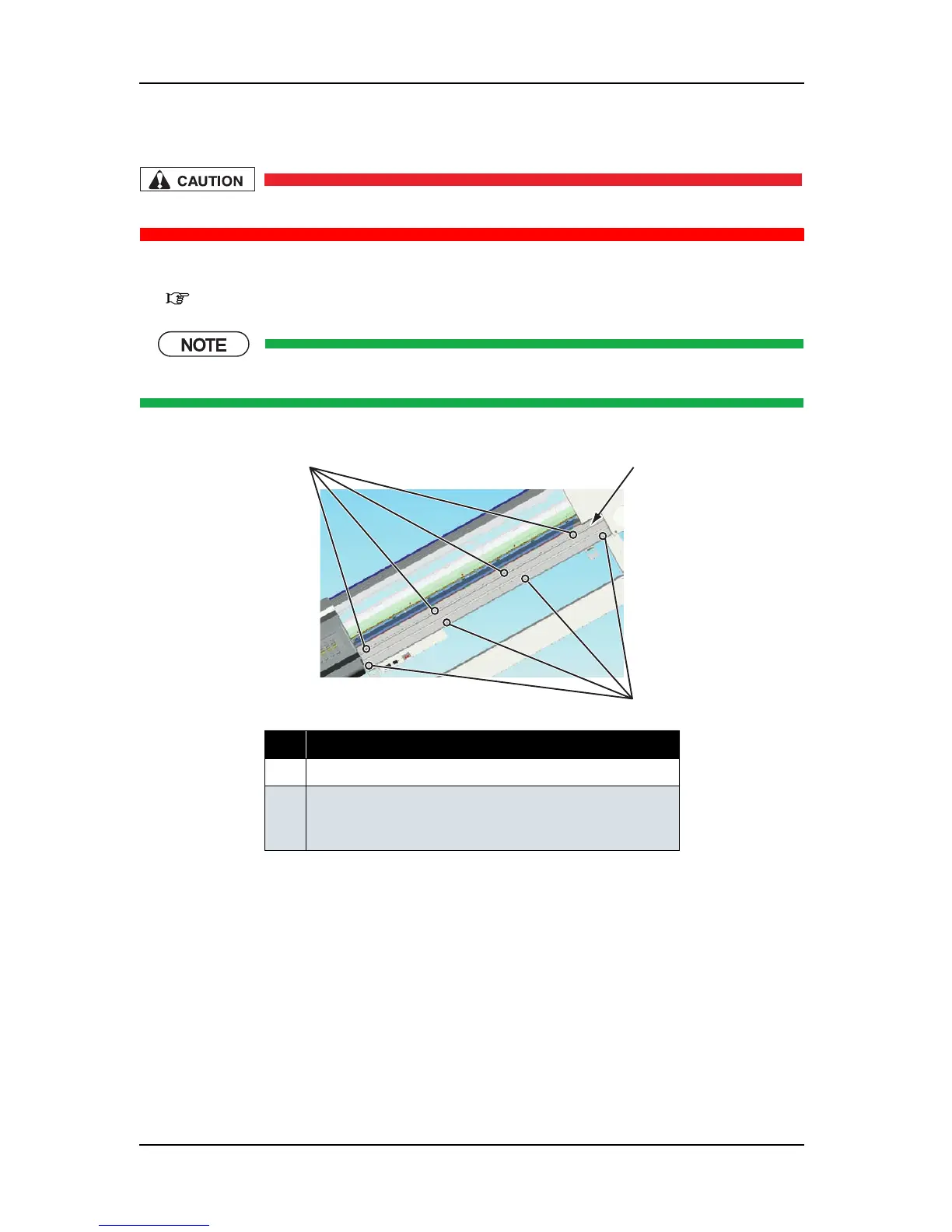

4.2.19 Removing Media Guide R (Lower)
Media guide R (lower) removal must be done by 2 or more persons.
1. Remove the media guide R (upper).
"4.2.18 Removing Media Guide R (Upper)" p.4-27
If the roll media holder overlaps the screw holes, displace the roll media holder.
2. Remove the screws (8 pieces) that retain the media guide R (lower).
3. Remove the
media guide R (lower).
4. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Media guide R (lower)
2 Screws that retain the media guide R (lower)
(pan-head screw with spring washer and flat washer M4
×
8)
2
2
1
